Pramet 25F1R030B25-SCC06-C 6758317 End Milling Cutter - Slotting
MODEL 6758317
$553.18 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

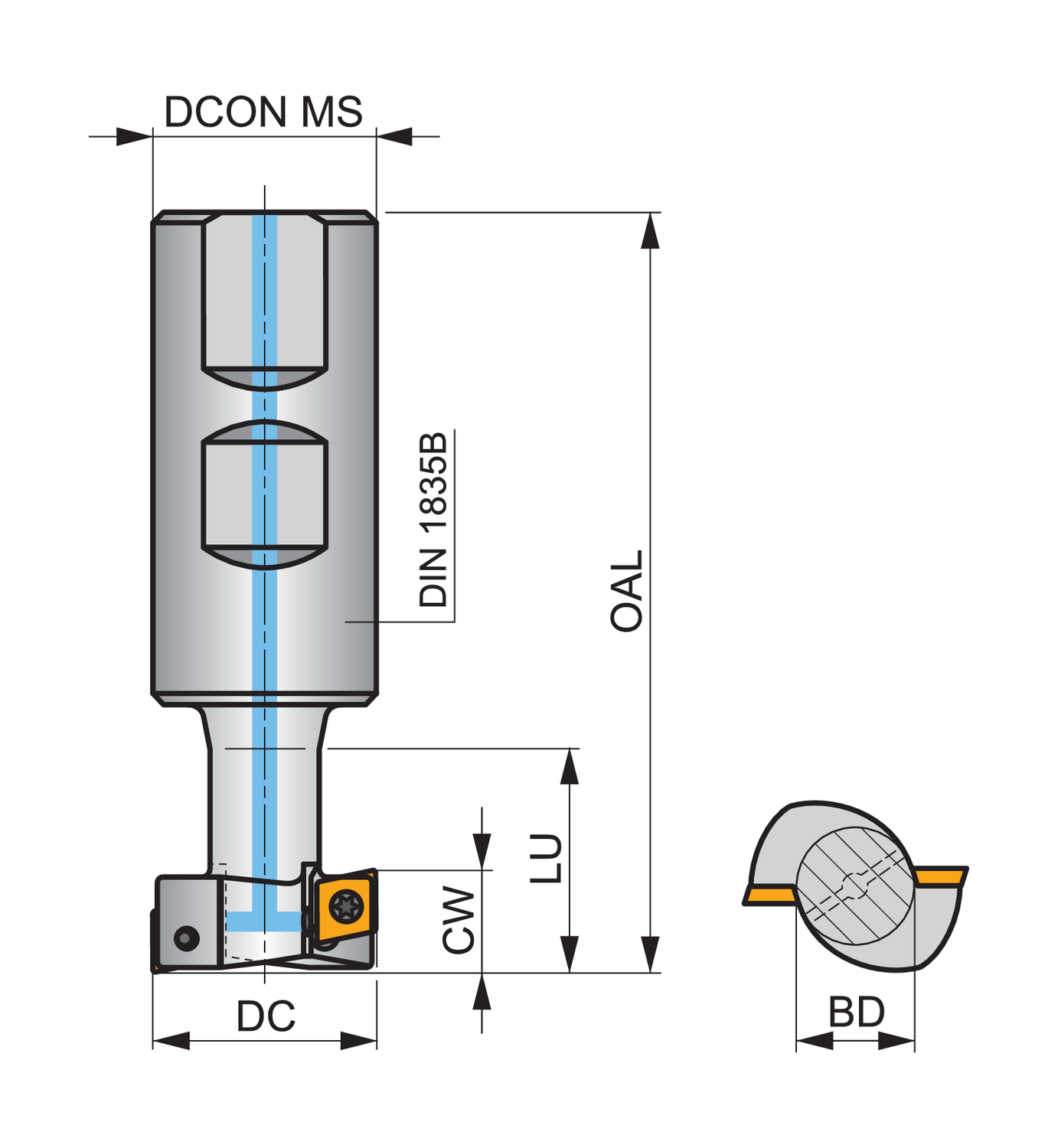

Axial rake angle (GAMP)
2
Body diameter - inch (BD)
0.472
Body diameter - millimeter (BD)
12
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.984
Cutting diameter - millimeter (DC)
25
Cutting width - millimeter (CW)
11
Face effective cutting edge count (ZEFF)
1
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
3.386
Overall length - millimeter (OAL)
86
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
4
Rotational speed maximum (RPMX)
28100
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
25
T-slot mill which utilises 2 off CCMX 060304 single-sided inserts, cutting diameter 25mm with 90° approach angle and 25mm Weldon shank according to DIN 1835B, 86mm overall length, through coolant for T-Slot milling and rear face milling with a maximum depth of cut of 11mm
