Image for Illustration purposes only. Actual product may vary
Pramet 25N3R042A25-SSD09 6757772 End Milling Cutter - Chamfering
MODEL 6757772
$285.85 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Connection size code machine side (CZC MS)
-
Cutting diameter - inch (DC)
0.984
Cutting diameter - millimeter (DC)
25
Cutting diameter maximum - inch (DCX)
1.457
Cutting diameter maximum - millimeter (DCX)
37
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
7.874
Overall length - millimeter (OAL)
200
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
25800
Shank
Cylindrical shank DIN 1835A
Usable Length - millimeter (LU)
42

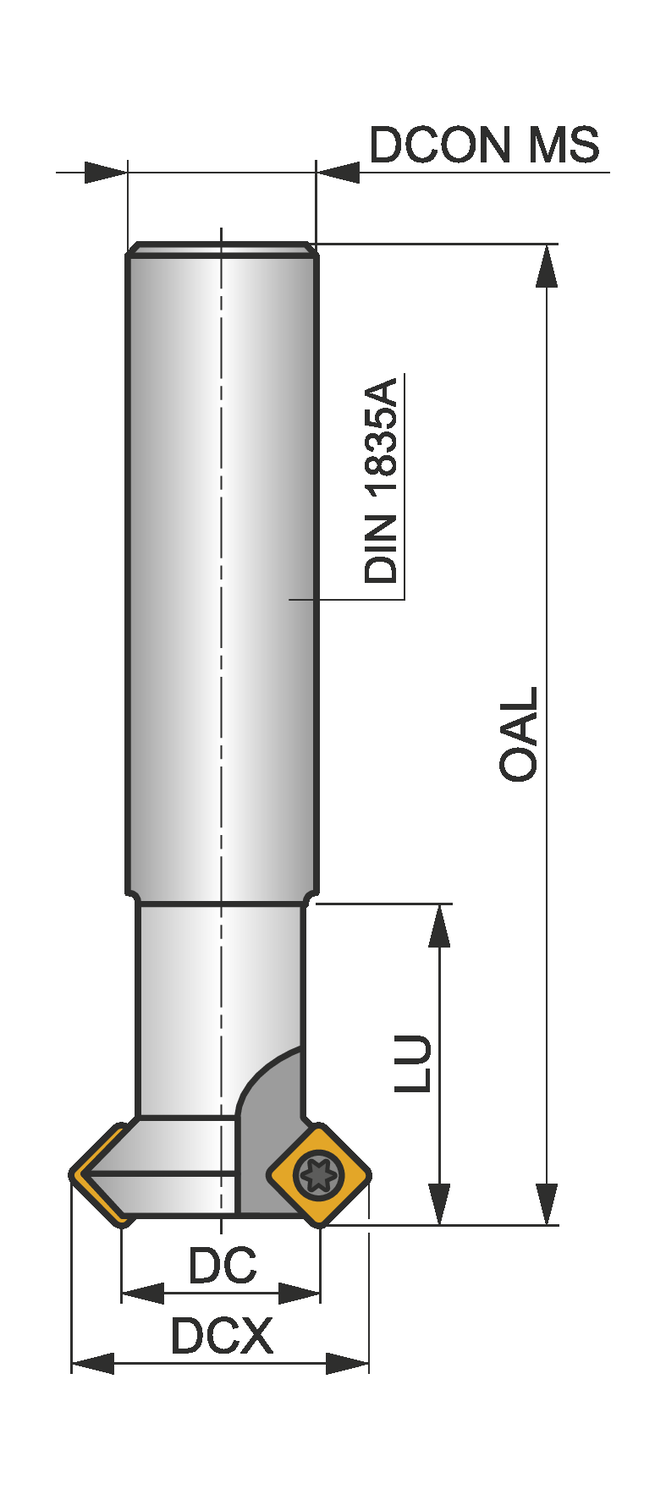

Chamfer mill with double negative geometry which utilises 3 off SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 25 to maximum 37mm with 45° approach angle and 25mm parallel shank according to DIN 1835A, 200mm overall length for chamfering with a maximum depth of cut of 8.0mm
