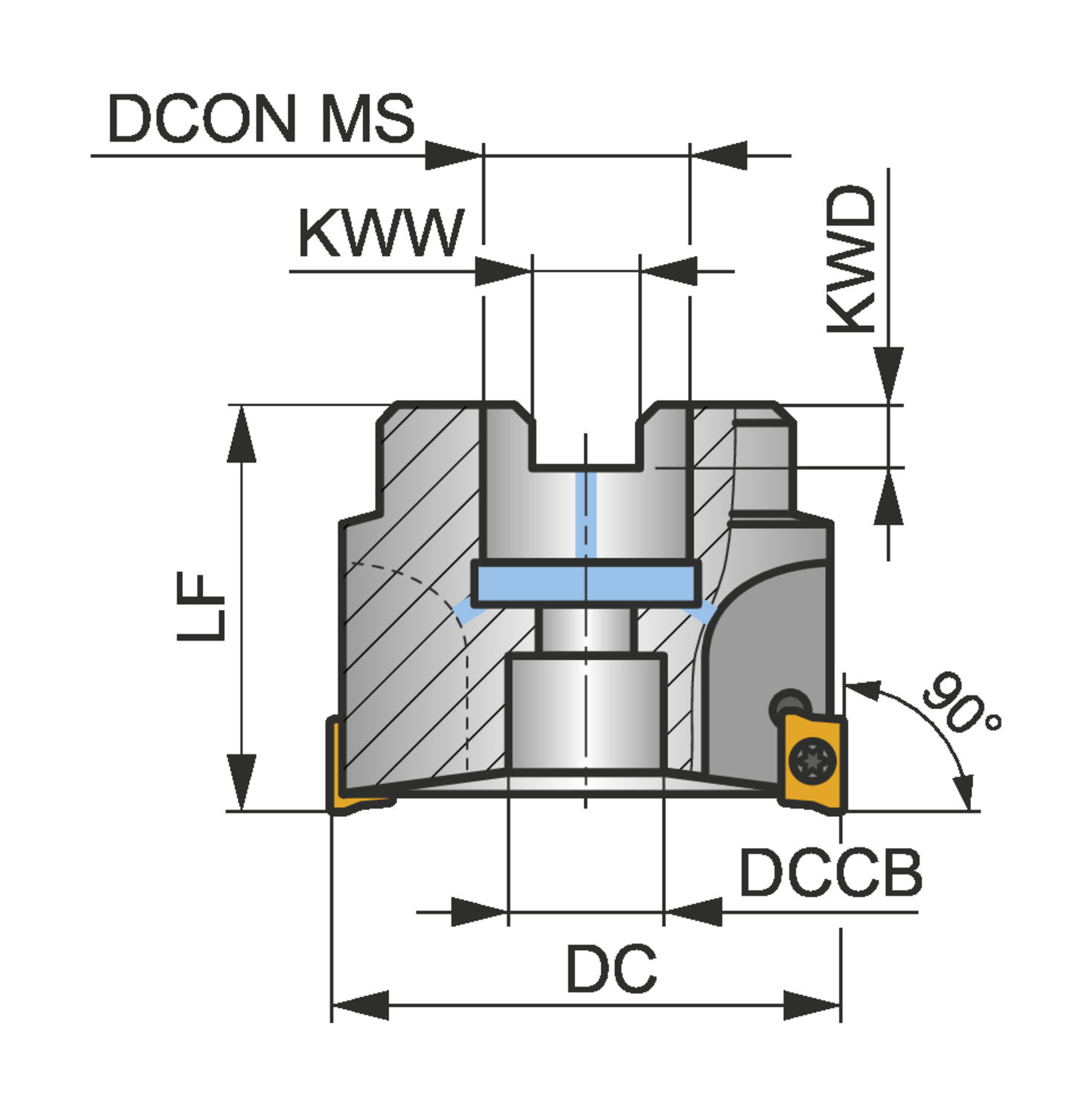

Axial rake angle (GAMP)
12
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1
Connection diameter - millimeter (DCON MS)
25.4
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.827
Counterbore diameter connection bore - millimeter (DCCB)
21
Cutting diameter - inch (DC)
3
Cutting diameter - millimeter (DC)
76.2
Cutting pitch differential (CPDF)
1
Functional length - inch (LF)
1.969
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.224
Keyway width - inch (KWW)
0.382
Peripheral effective cutting edge count (ZEFP)
10
Radial rake angle (GAMF)
-6
Rotational speed maximum (RPMX)
13500
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 10 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 3.000'' with 90° approach angle and 1.000'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354''
