Image for Illustration purposes only. Actual product may vary
Pramet 32A4R042B32-SAD11E-C 6760208 End Milling Cutter - Square Shoulder
MODEL 6760208
$348.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.26
Cutting diameter - millimeter (DC)
32
Hand (Cutting direction)
Right
Insert index count (NOI)
4
Overall length - inch (OAL)
4.016
Overall length - millimeter (OAL)
102
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-9
Rotational speed maximum (RPMX)
21300
Shank
Weldon shank DIN 1835B
Usable Length maximum - millimeter (LUX)
42

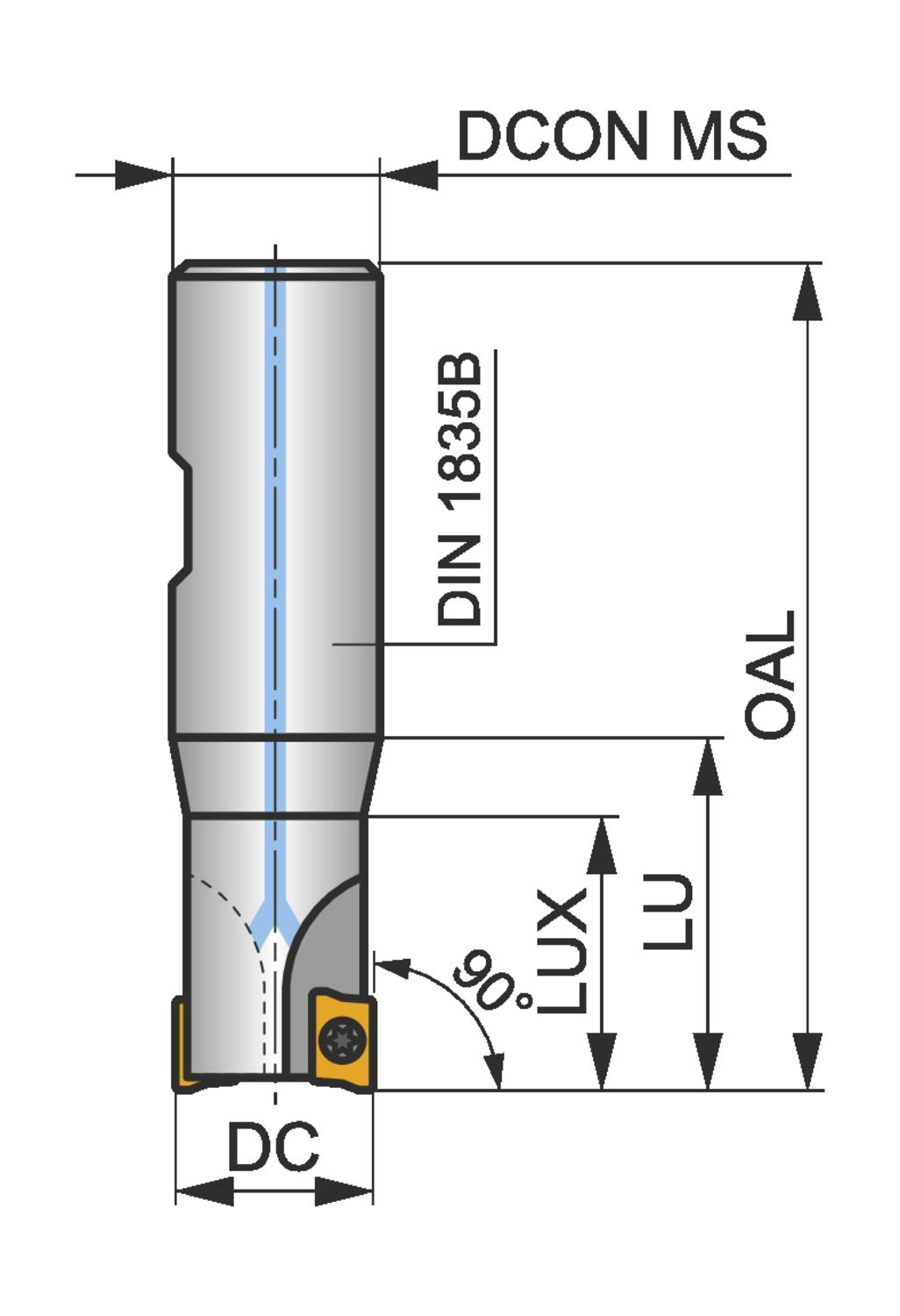

Shoulder mill with positve/negative geometry which utilises 4 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm Weldon shank according to DIN 1835B, 42mm functional and 102mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm
