Image for Illustration purposes only. Actual product may vary
Pramet 400A10R-IS45HN09C-CF 6790766 Shell Milling Cutter - Face
MODEL 6790766
$891.47 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

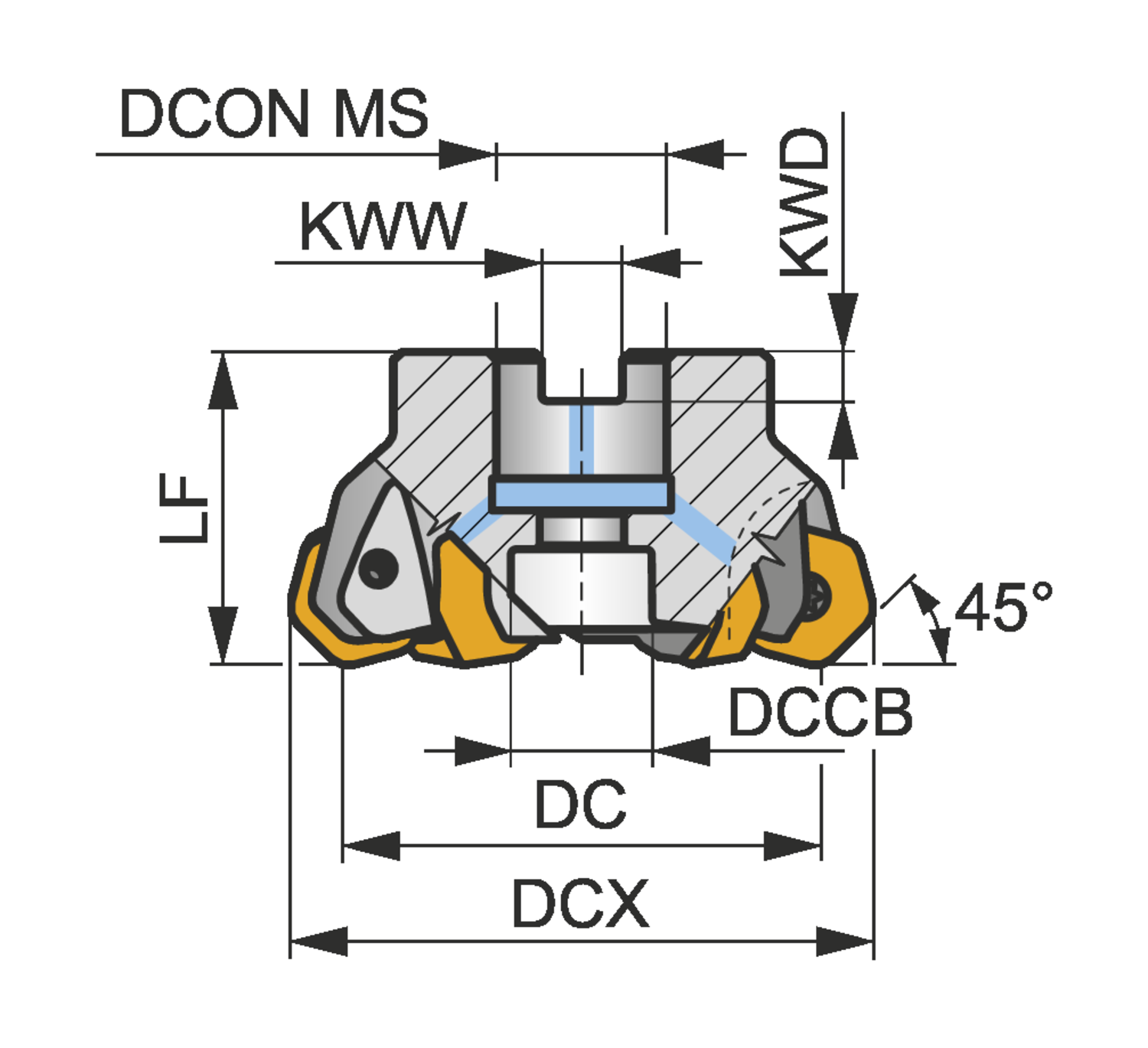

Axial rake angle (GAMP)
-7
Clamping Type Code (MTP)
Screw clamping through hole
Connection bore diameter - inch (DCB)
1.5
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.26
Counterbore diameter connection bore - millimeter (DCCB)
32
Cutting diameter - inch (DC)
4
Cutting diameter - millimeter (DC)
101.6
Cutting diameter maximum - inch (DCX)
4.461
Cutting diameter maximum - millimeter (DCX)
113.3
Functional length - inch (LF)
1.969
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.382
Keyway width - inch (KWW)
0.63
Peripheral effective cutting edge count (ZEFP)
10
Radial rake angle (GAMF)
-8
Rotational speed maximum (RPMX)
5600
Shank
Shell mill DIN 8030 A
Face mill with double negative geometry which utilises 10 off HNGX 0906AN.. or XNGX 0906AN.. double-sided inserts, cutting diameter 4.000 to maximum 4.461'' with 45° approach angle and 1.500'' connection bore according to DIN 8030-A, 1.969'' protrusion length for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of .197''
