Pramet 40A4R-S90AP16D 6757024 Shell Milling Cutter - Square Shoulder
MODEL 6757024
$423.63 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

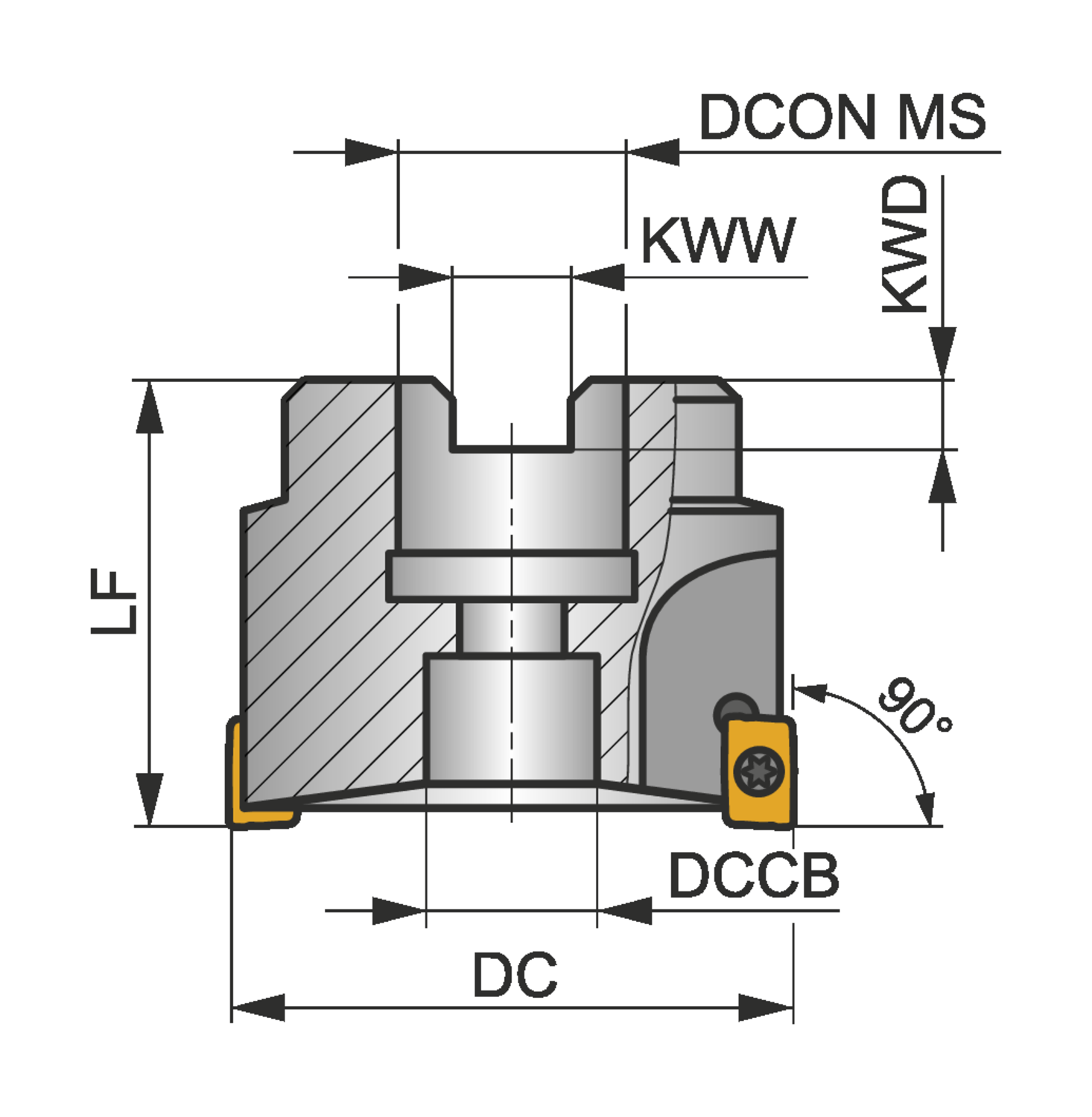

Axial rake angle (GAMP)
6
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Counterbore diameter connection bore - inch (DCCB)
0.433
Counterbore diameter connection bore - millimeter (DCCB)
11
Cutting diameter - inch (DC)
1.575
Cutting diameter - millimeter (DC)
40
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
4
Keyway depth - millimeter (KWD)
5.6
Keyway width - millimeter (KWW)
8.4
Overall length - inch (OAL)
1.575
Overall length - millimeter (OAL)
40
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
13200
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 4 off APKT 1604.. or APET 1604.. single-sided inserts, cutting diameter 40mm with 90° approach angle and 16mm connection bore according to DIN 8030-A, 40mm protrusion length and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm
