Pramet 40J3R70B32-SAD11E56-C 6800796 Helical End Milling Cutter - Square Shoulder
MODEL 6800796
$1,282.19 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

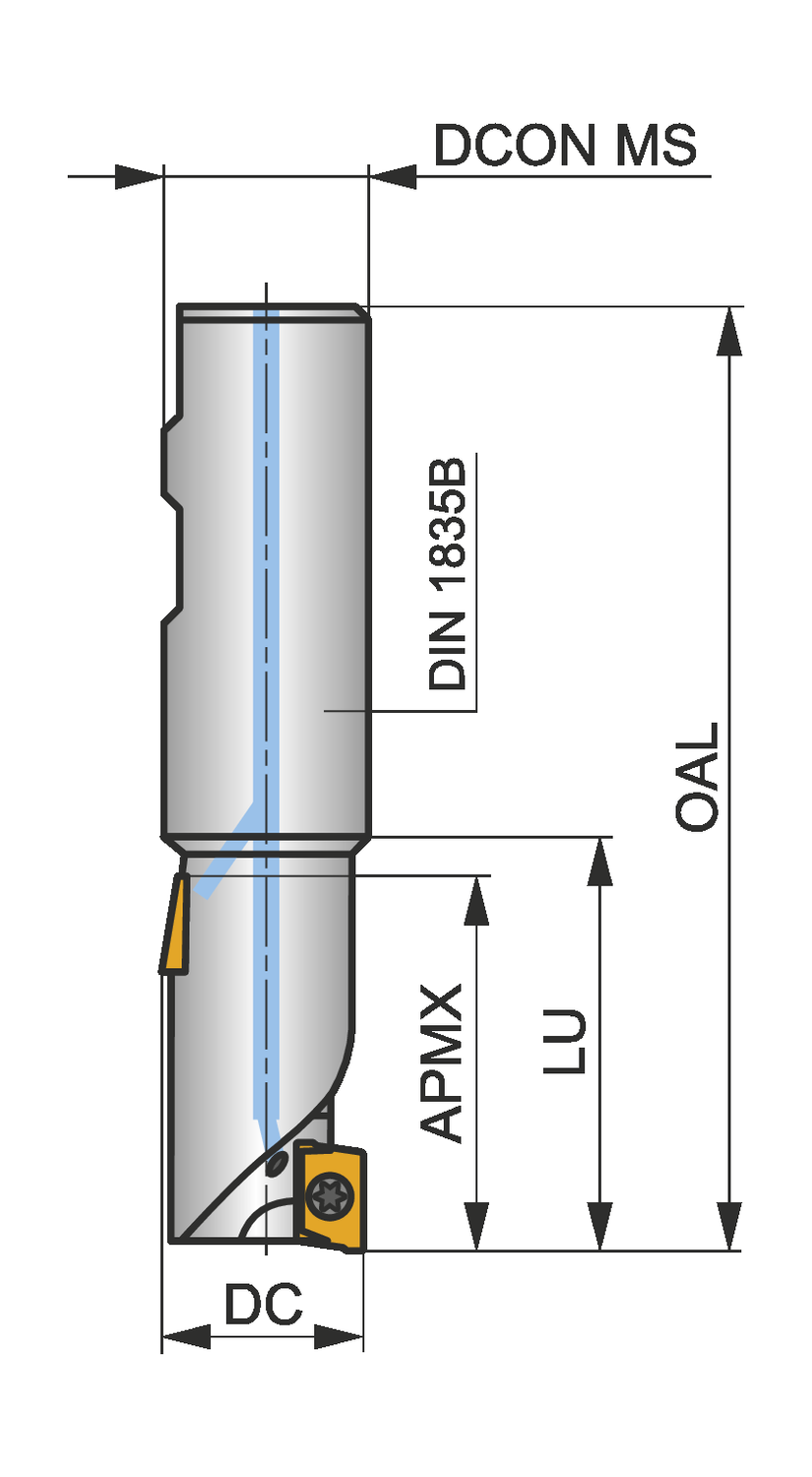

Axial rake angle (GAMP)
11
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.575
Cutting diameter - millimeter (DC)
40
Depth of cut maximum - millimeter (APMX)
56
Flute count (NOF)
3
Hand (Cutting direction)
Right
Insert index count (NOI)
18
Overall length - inch (OAL)
5.118
Overall length - millimeter (OAL)
130
Peripheral effective cutting edge count (ZEFP)
18
Radial rake angle (GAMF)
-8.1
Rotational speed maximum (RPMX)
19100
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
70
Shoulder mill with extended flute with positve/negative geometry which utilises 18 off ADMX 11T3.. single-sided inserts, cutting diameter 40mm with 90° approach angle and 32mm Weldon shank according to DIN 1835B, 56mm functional and 130.0mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 56mm
