Pramet 45T04R-S60XP1625-C 6760358 Helical Shell Milling Cutter - Chamfering
MODEL 6760358
$921.29 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

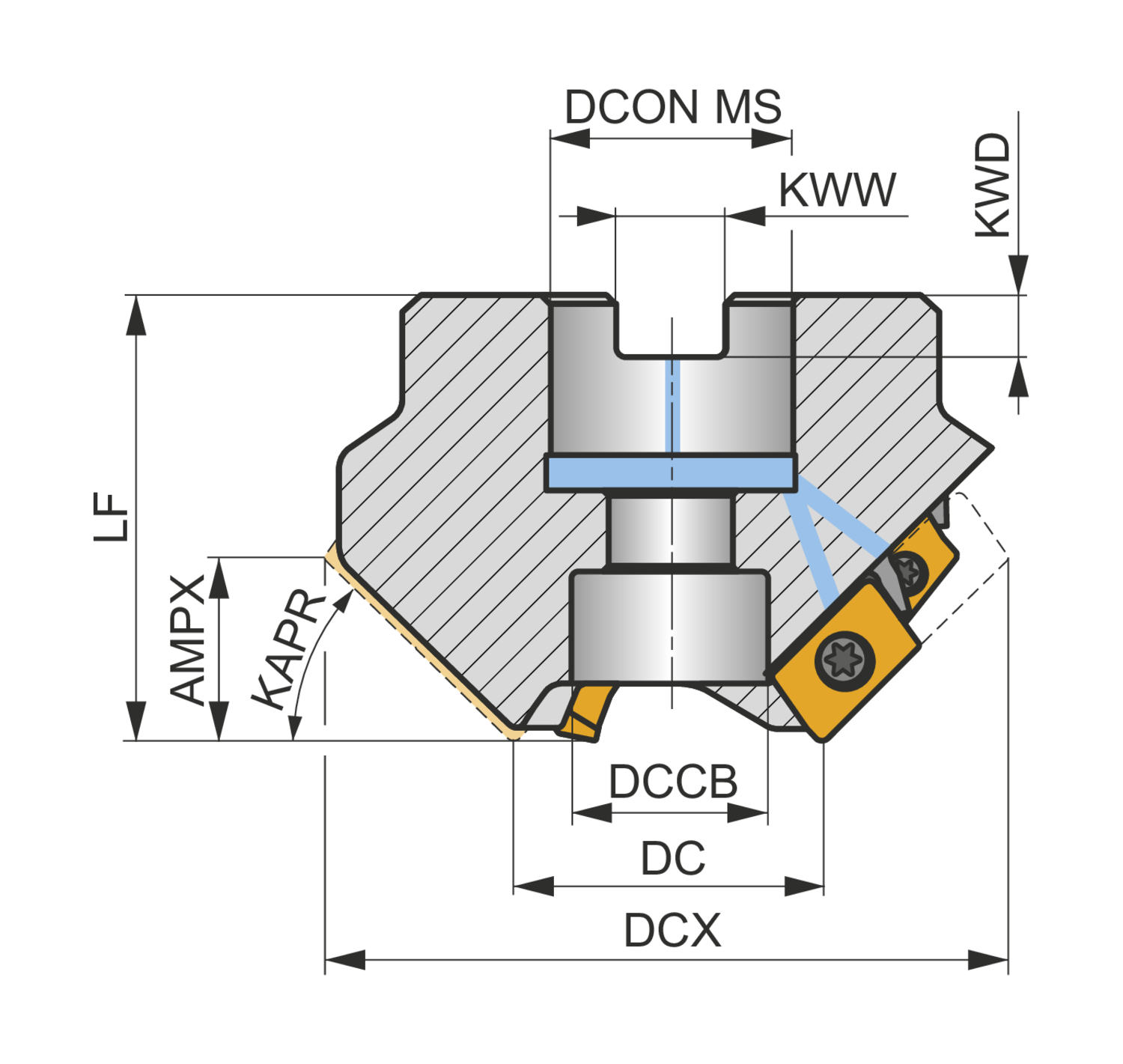

Axial rake angle (GAMP)
4
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.866
Counterbore diameter connection bore - millimeter (DCCB)
22
Cutting diameter - inch (DC)
1.772
Cutting diameter - millimeter (DC)
45
Cutting diameter maximum - inch (DCX)
2.921
Cutting diameter maximum - millimeter (DCX)
74.2
Cutting pitch differential (CPDF)
1
Depth of cut maximum - millimeter (APMX)
25
Flute count (NOF)
4
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
8
Keyway depth - millimeter (KWD)
7
Keyway width - millimeter (KWW)
12.4
Peripheral effective cutting edge count (ZEFP)
8
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
13400
Shank
Shell mill DIN 8030 – helical mill
Tool cutting edge angle (KAPR)
60
Chamfer mill with positve/negative geometry which utilises 8 off XPHT 1604.. single-sided inserts, cutting diameter 45 to maximum 74.2mm with 60° approach angle and 27mm connection bore according to DIN 8030, 50mm protrusion length, through coolant and differential pitch for chamfering with a maximum depth of cut of 25mm
