Pramet 500A12R-IS45SE09F-C 6789744 Shell Milling Cutter - Face
MODEL 6789744
$926.43 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
20
Clamping Type Code (MTP)
Screw clamping through hole

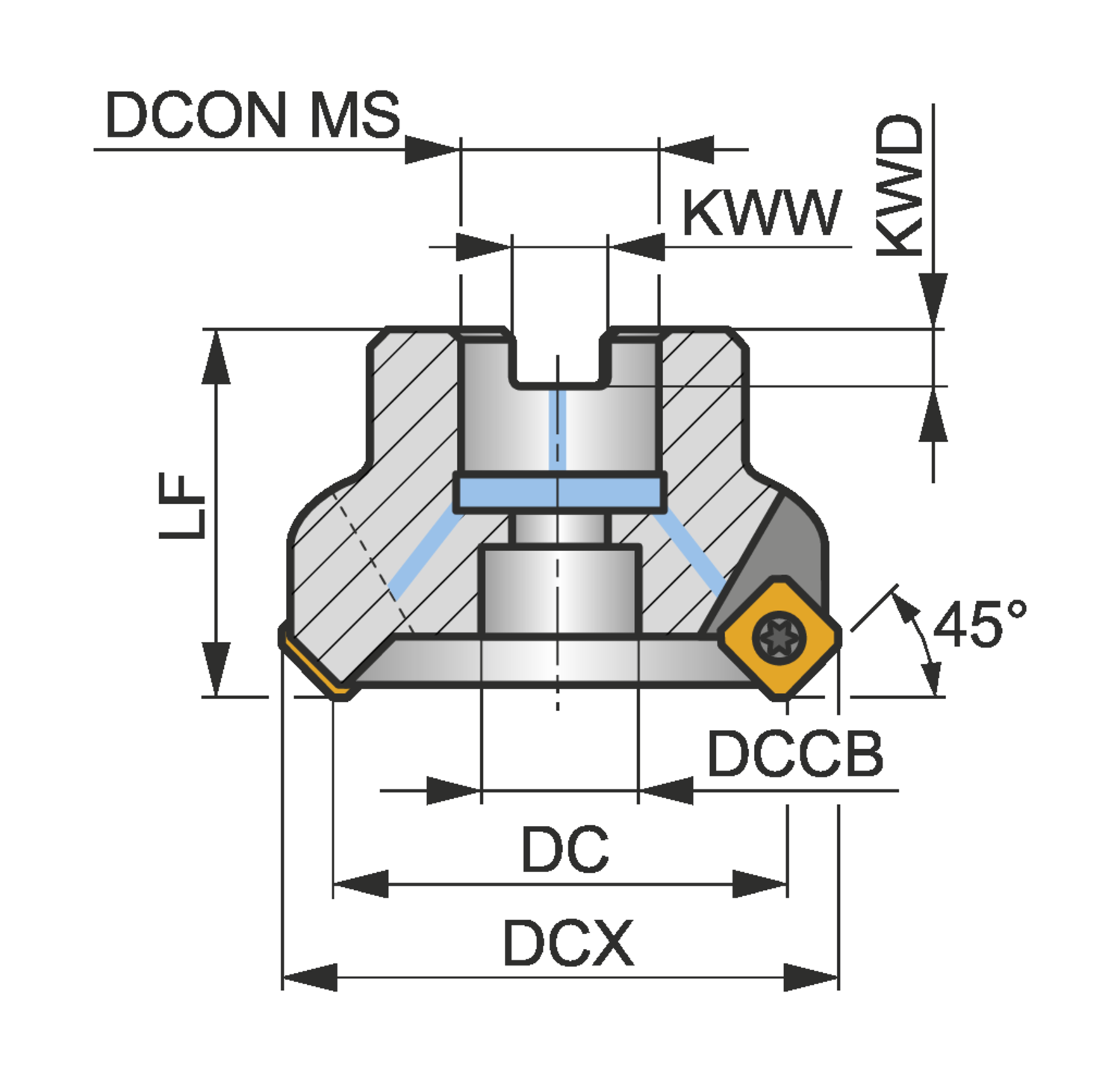

Connection diameter - inch (DCON MS)
1.5
Connection diameter - millimeter (DCON MS)
38.1
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.26
Counterbore diameter connection bore - millimeter (DCCB)
32
Cutting diameter - inch (DC)
5
Cutting diameter - millimeter (DC)
127
Cutting diameter maximum - inch (DCX)
5.374
Cutting diameter maximum - millimeter (DCX)
136.5
Cutting pitch differential (CPDF)
1
Functional length - inch (LF)
2.48
Hand (Cutting direction)
Right
Keyway depth - inch (KWD)
0.382
Keyway width - inch (KWW)
0.63
Peripheral effective cutting edge count (ZEFP)
12
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
9800
Shank
Shell mill DIN 8030 A
Face mill with positve/negative geometry which utilises 12 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 5.000 to maximum 5.374'' with 45° approach angle and 1.500'' connection bore according to DIN 8030-A, 2.480'' protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of .177''
