Pramet 50A5R-S90AP16D 6757025 Shell Milling Cutter - Square Shoulder
MODEL 6757025
$482.24 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
6
Clamping Type Code (MTP)
Screw clamping through hole

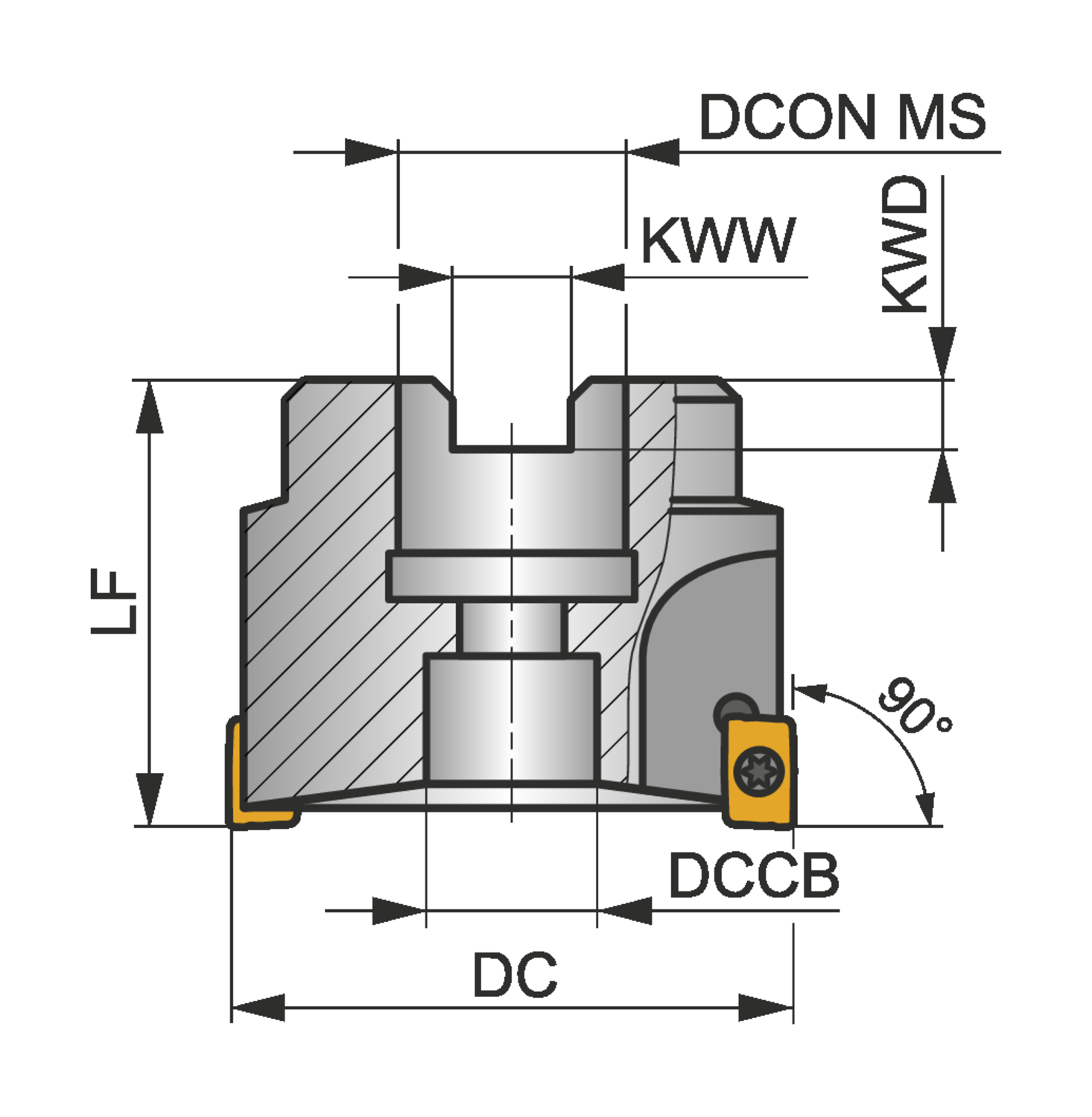

Connection diameter - inch (DCON MS)
0.866
Connection diameter - millimeter (DCON MS)
22
Counterbore diameter connection bore - inch (DCCB)
0.709
Counterbore diameter connection bore - millimeter (DCCB)
18
Cutting diameter - inch (DC)
1.969
Cutting diameter - millimeter (DC)
50
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Keyway depth - millimeter (KWD)
6.3
Keyway width - millimeter (KWW)
10.4
Overall length - inch (OAL)
1.575
Overall length - millimeter (OAL)
40
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
11800
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 5 off APKT 1604.. or APET 1604.. single-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm
