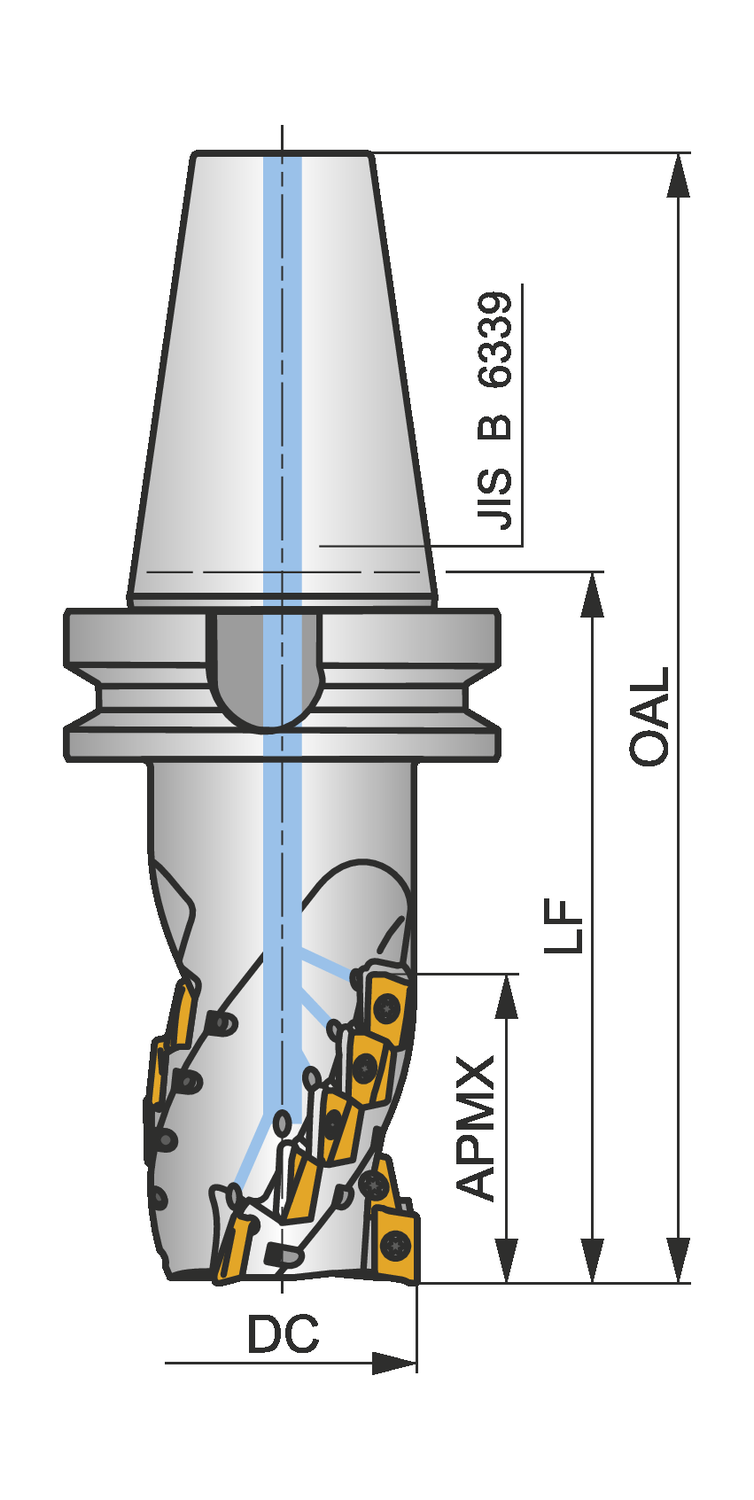

Image for Illustration purposes only. Actual product may vary
Pramet 50J3R140X50-SAD16E68-C 6922410 Helical End Milling Cutter - Square Shoulder
MODEL 6922410
$1,341.83 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
12
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
50
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.969
Cutting diameter - millimeter (DC)
50
Depth of cut maximum - millimeter (APMX)
68
Flute count (NOF)
3
Functional length - millimeter (LF)
140
Hand (Cutting direction)
Right
Insert index count (NOI)
15
Overall length - inch (OAL)
9.528
Overall length - millimeter (OAL)
242
Peripheral effective cutting edge count (ZEFP)
15
Radial rake angle (GAMF)
-6
Rotational speed maximum (RPMX)
13200
Shank
Arbor MAS BT (JIS-B-6339)
Shoulder mill with extended flute with positve/negative geometry which utilises 15 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 50mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 68mm functional and 242mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 68mm
