Image for Illustration purposes only. Actual product may vary
Pramet 50J4R124X50-SSAP55+21 6757817 Helical End Milling Cutter - Square Shoulder
MODEL 6757817
$1,398.38 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
7
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
50
Cutting diameter - inch (DC)
1.969
Cutting diameter - millimeter (DC)
50
Depth of cut maximum - millimeter (APMX)
76
Flute count (NOF)
4
Functional length - millimeter (LF)
124
Hand (Cutting direction)
Right
Insert index count (NOI)
18
Overall length - inch (OAL)
9.882
Overall length - millimeter (OAL)
251
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
9500
Shank
Arbor DIN 2080-1

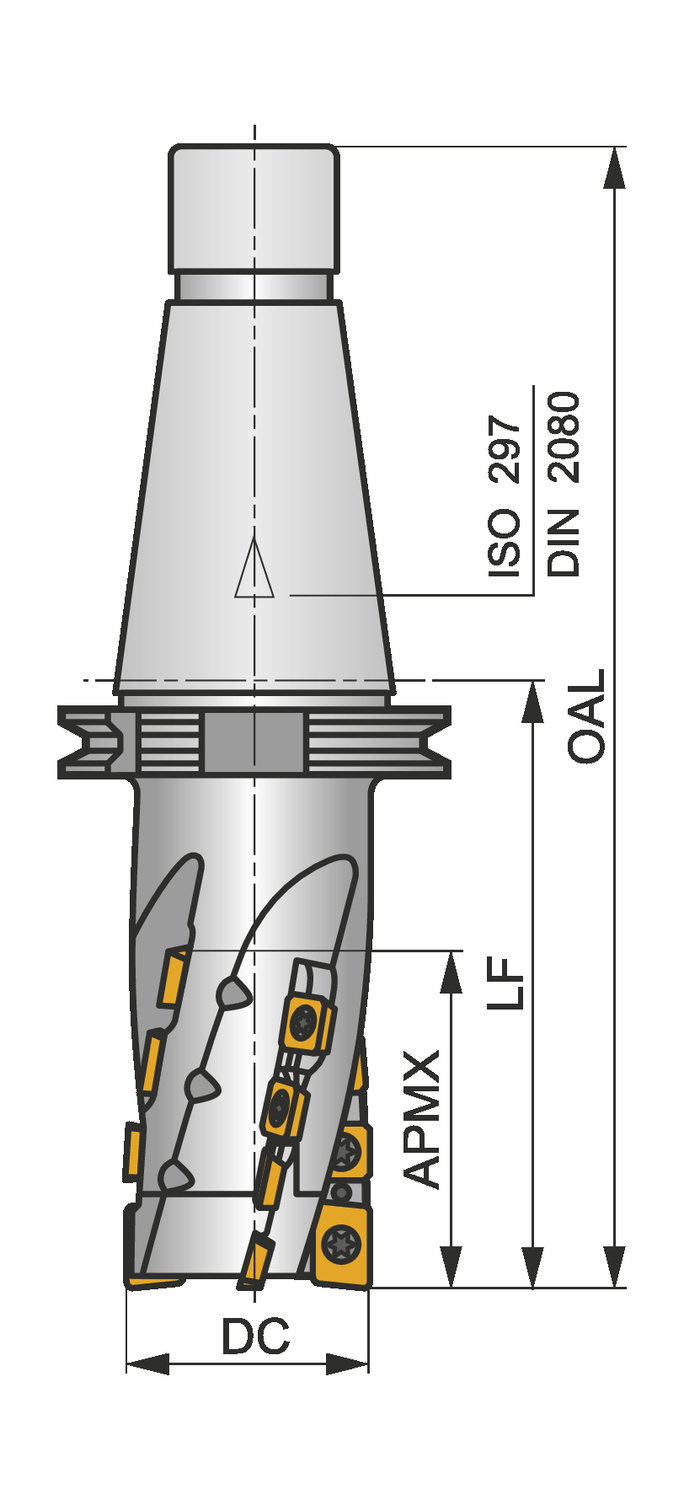

Shoulder mill with extended flute and exchangeable head, with positve/negative geometry which utilises 2 off APE.
1504.. and 16 SPE.
1204.. single-sided inserts, cutting diameter 50mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 76mm functional and 251mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 76mm
