Image for Illustration purposes only. Actual product may vary
Pramet 63A09R-S90TN10-C 7178525 Shell Milling Cutter - Square Shoulder
MODEL 7178525
$633.38 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-11
Clamping Type Code (MTP)
Screw clamping through hole

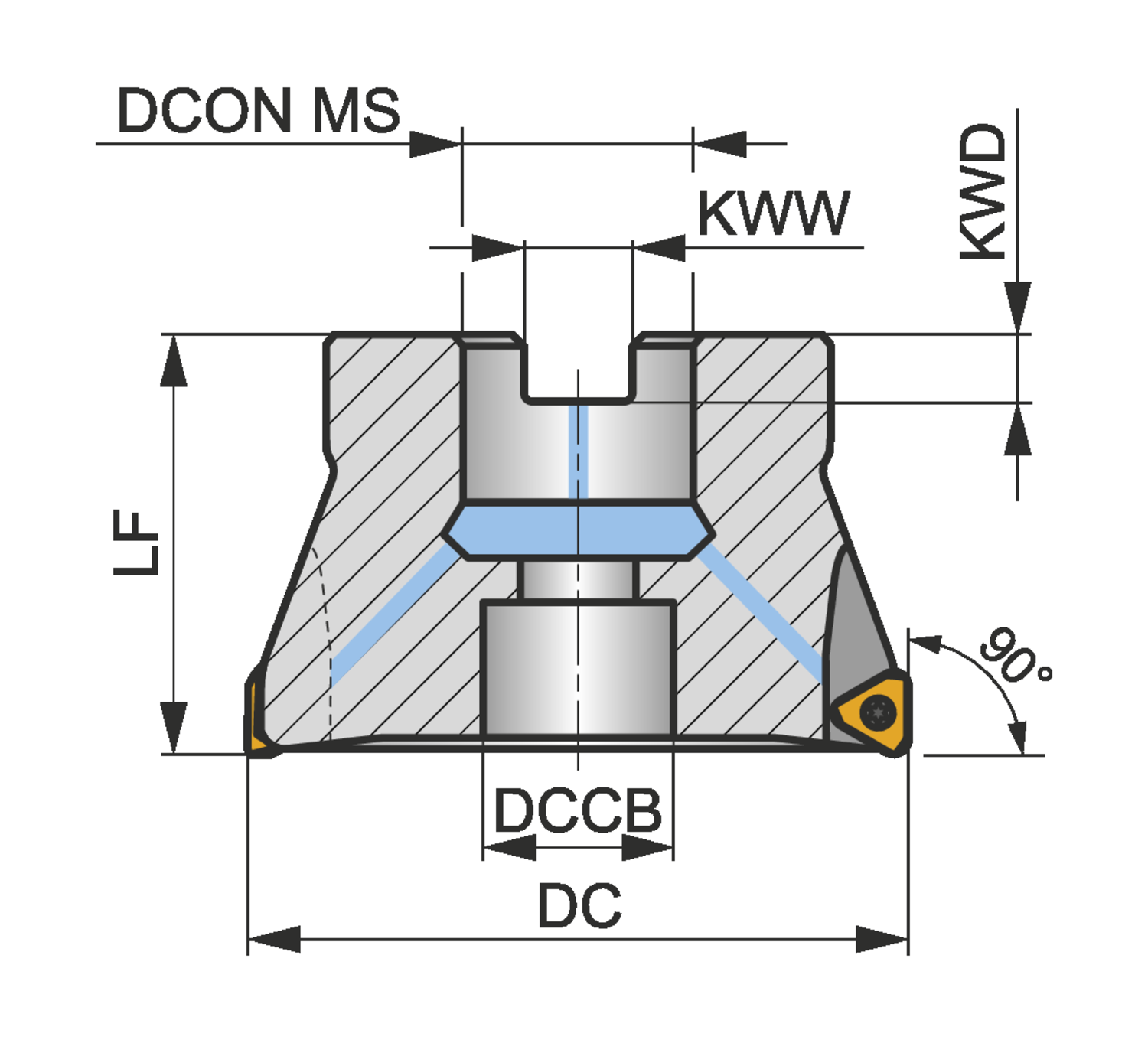

Connection diameter - inch (DCON MS)
0.866
Connection diameter - millimeter (DCON MS)
22
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.709
Counterbore diameter connection bore - millimeter (DCCB)
18
Cutting diameter - inch (DC)
2.48
Cutting diameter - millimeter (DC)
63
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
40
Hand (Cutting direction)
Right
Insert index count (NOI)
9
Keyway depth - millimeter (KWD)
6.3
Keyway width - millimeter (KWW)
10.4
Peripheral effective cutting edge count (ZEFP)
9
Radial rake angle (GAMF)
-15
Rotational speed maximum (RPMX)
15500
Shank
Shell mill DIN 8030 A
Shoulder face mill with double negative geometry which utilises 9 off TNGX 1004.. double-sided inserts, cutting diameter 63mm with 90° approach angle and 22mm connection bore according to DIN 8030-A, 40mm protrusion length, through coolant and differential pitch for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0mm
