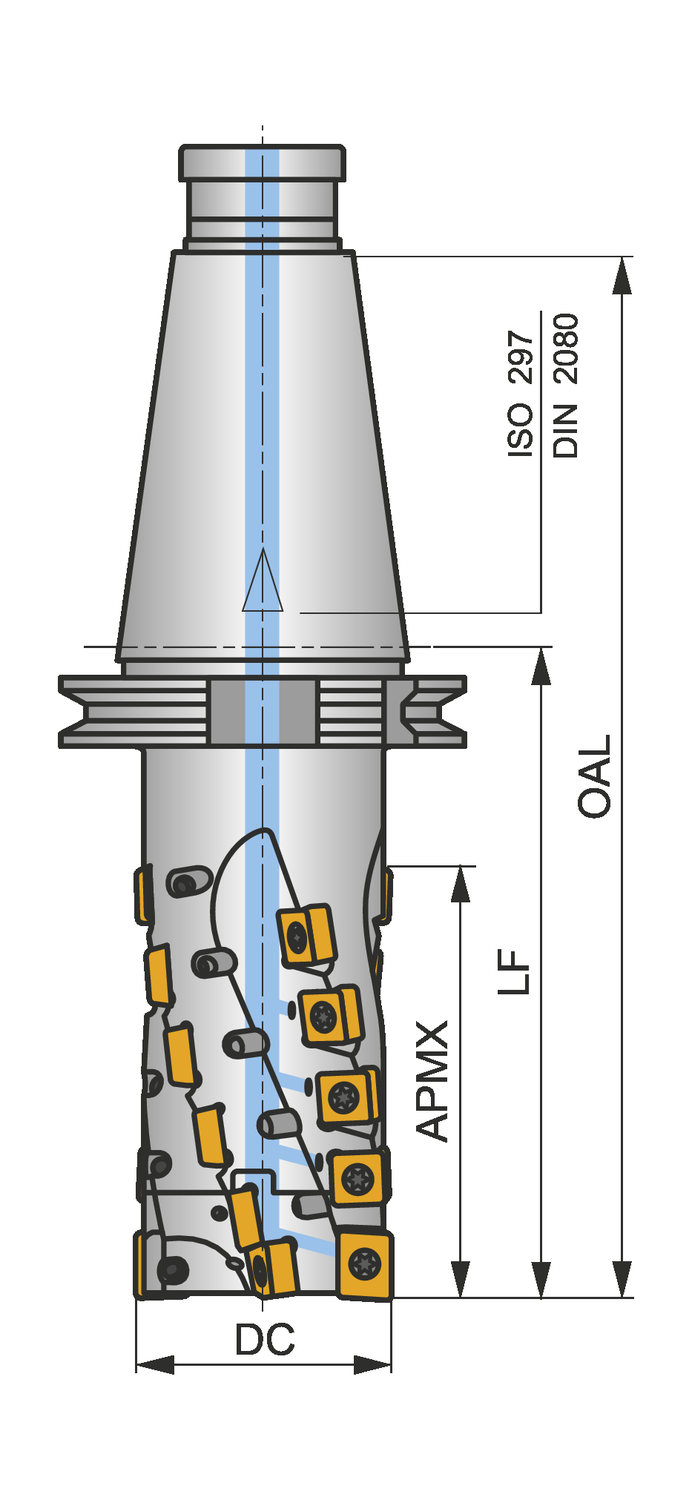

Image for Illustration purposes only. Actual product may vary
Pramet 63J2R155G50-SLSN104-C 6760429 Helical End Milling Cutter - Heavy Duty
MODEL 6760429
$2,311.44 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
50
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
2.48
Cutting diameter - millimeter (DC)
63
Depth of cut maximum - millimeter (APMX)
104
Flute count (NOF)
4
Functional length - millimeter (LF)
155
Hand (Cutting direction)
Right
Insert index count (NOI)
22
Overall length - inch (OAL)
11.102
Overall length - millimeter (OAL)
282
Radial rake angle (GAMF)
-9
Rotational speed maximum (RPMX)
8500
Shank
Arbor DIN 2080-1
Shoulder mill with extended flute with double negative geometry which utilises 2 off LNET 1606.. and 20 SN.. 1305.. double-sided inserts, cutting diameter 63mm with 90° approach angle and SK 50 taper shank according to ISO 297, 104mm functional and 282mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 104mm
