6760427

Image for Illustration purposes only. Actual product may vary

View in markdown

Pramet 63J2R175X50-SLSN104-C helical end milling cutter body, 2.48 in (63 mm) cutting diameter, 4.094 in (104 mm) maximum depth of cut, 22 inserts, BT 50 taper shank, through coolant, right hand, for deep shoulder and deep slot milling in steel and cast iron. Article 6760427.

MODEL 6760427

BRAND

Pramet

SKU

6064546

WEIGHT

13.448 lb

UOM

each

$2,650.76 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Axial rake angle (GAMP)

-10

Clamping Type Code (MTP)

Screw clamping through hole

Connection size code machine side (CZC MS)

50

Coolant supply property (CSP)

1

Cutting diameter - inch (DC)

2.48

Cutting diameter - millimeter (DC)

63

Depth of cut maximum - millimeter (APMX)

104

Flute count (NOF)

4

Functional length - millimeter (LF)

175

Hand (Cutting direction)

Right

Insert index count (NOI)

22

Overall length - inch (OAL)

10.906

Overall length - millimeter (OAL)

277

Radial rake angle (GAMF)

-9

Rotational speed maximum (RPMX)

8500

Shank

Arbor MAS BT (JIS-B-6339)

Shoulder mill with extended flute with double negative geometry which utilises 2 off LNET 1606.. and 20 SN.. 1305.. double-sided inserts, cutting diameter 63mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 104mm functional and 277mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 104mm

When will I be charged for my order? Ordering Do you provide credit terms? Ordering Can I get a discounted price? I am a reseller / government entity. Ordering What is the return/warranty policy? Ordering Can it be shipped today? Ordering Does “Usually ships in 24 hours” mean it’s in stock? Ordering Read full FAQ All FAQs

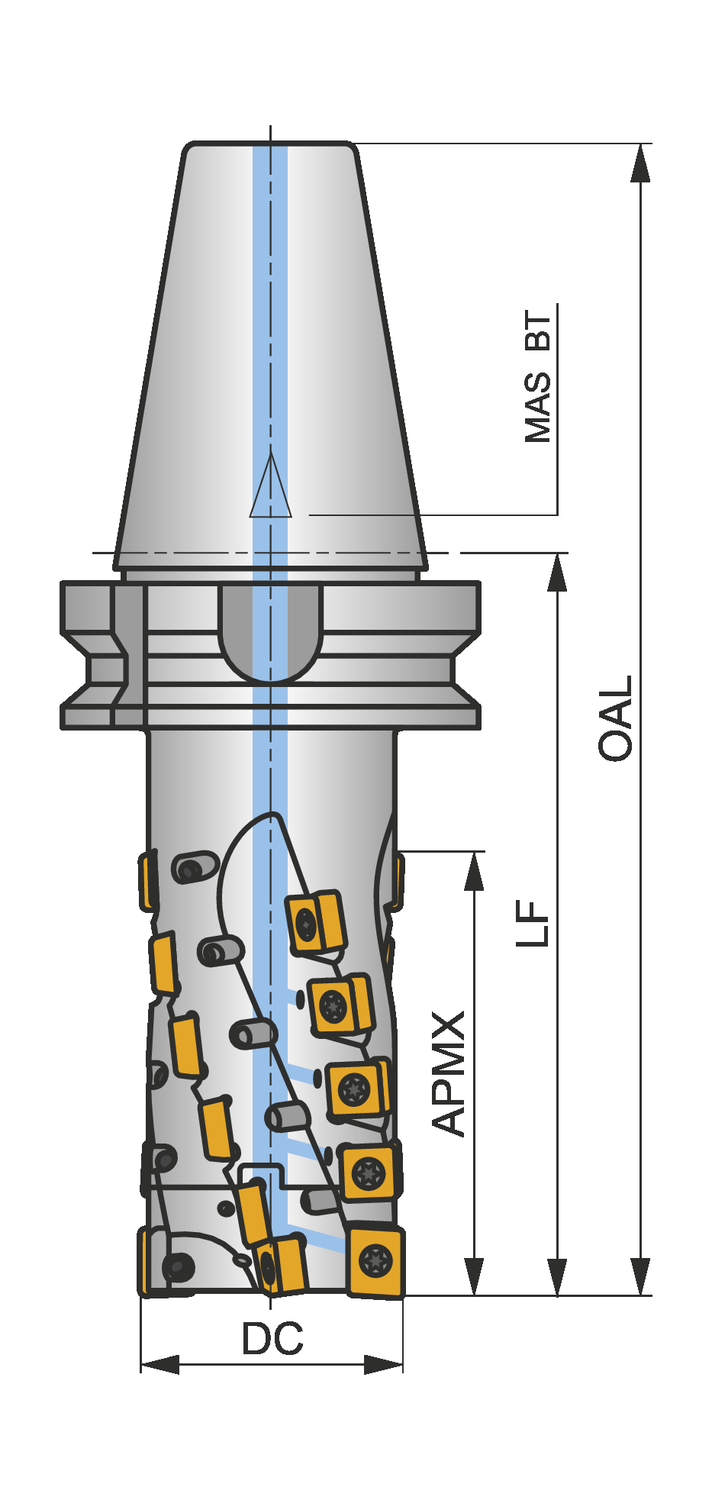

Line Drawing PNG
