Pramet 63T04R-S90AD16E40-C 6922416 Helical Shell Milling Cutter - Square Shoulder
MODEL 6922416
$1,023.08 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

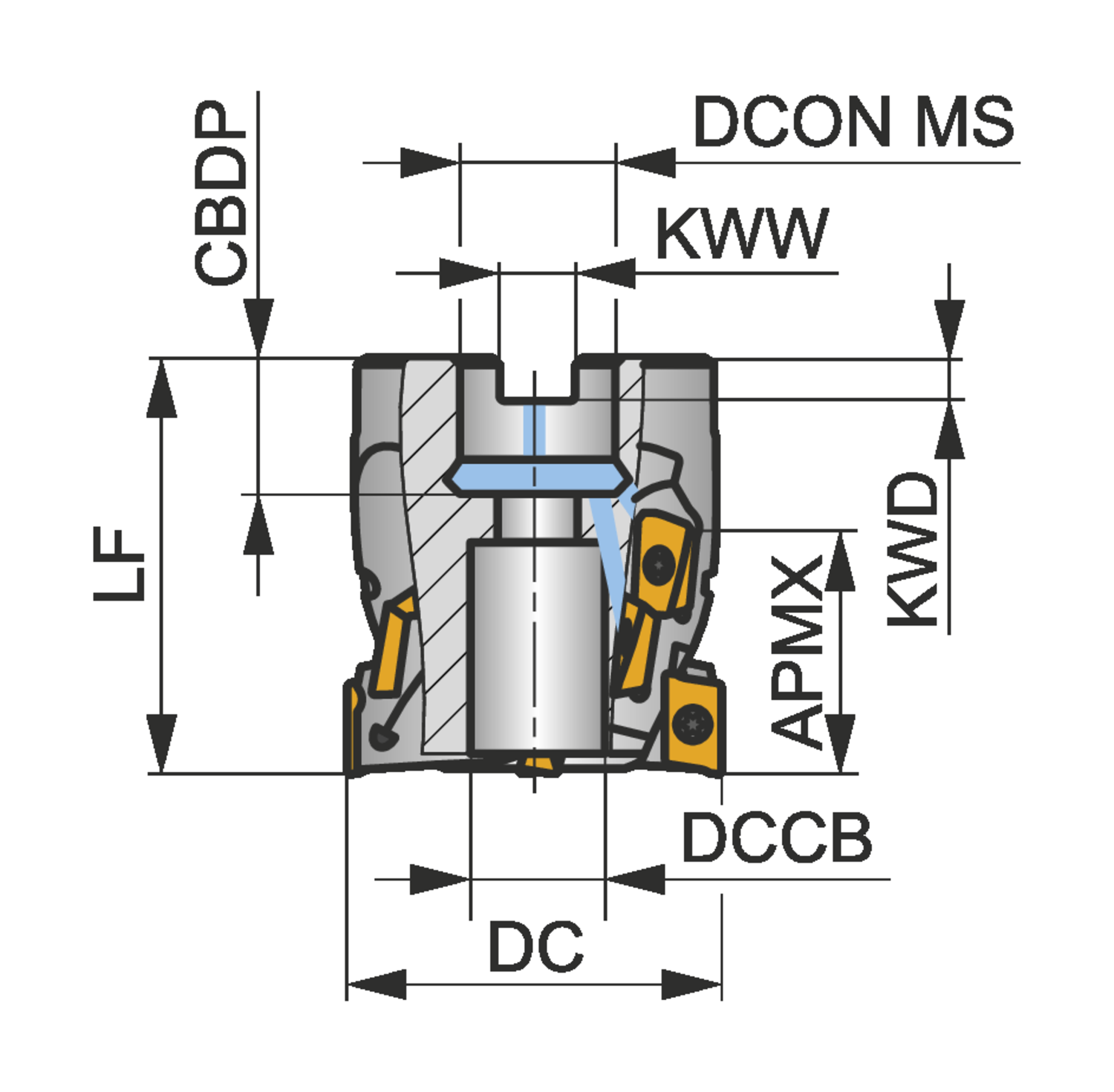

Axial rake angle (GAMP)
12
Clamping Type Code (MTP)
Screw clamping through hole
Connection bore depth - millimeter (CBDP)
22
Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.866
Counterbore diameter connection bore - millimeter (DCCB)
22
Cutting diameter - inch (DC)
2.48
Cutting diameter - millimeter (DC)
63
Cutting pitch differential (CPDF)
1
Depth of cut maximum - millimeter (APMX)
40
Flute count (NOF)
4
Functional length - millimeter (LF)
70
Hand (Cutting direction)
Right
Insert index count (NOI)
12
Peripheral effective cutting edge count (ZEFP)
12
Radial rake angle (GAMF)
-6
Rotational speed maximum (RPMX)
11700
Shank
Shell mill DIN 8030 – helical mill
Shoulder mill with extended flute with positve/negative geometry which utilises 12 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 63mm with 90° approach angle and 27mm connection bore according to DIN 8030, 40mm functional and 70mm protrusion length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 40mm
