Pramet 80A05R-S45OE06Z-C 6922502 Shell Milling Cutter - Face
MODEL 6922502
$645.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

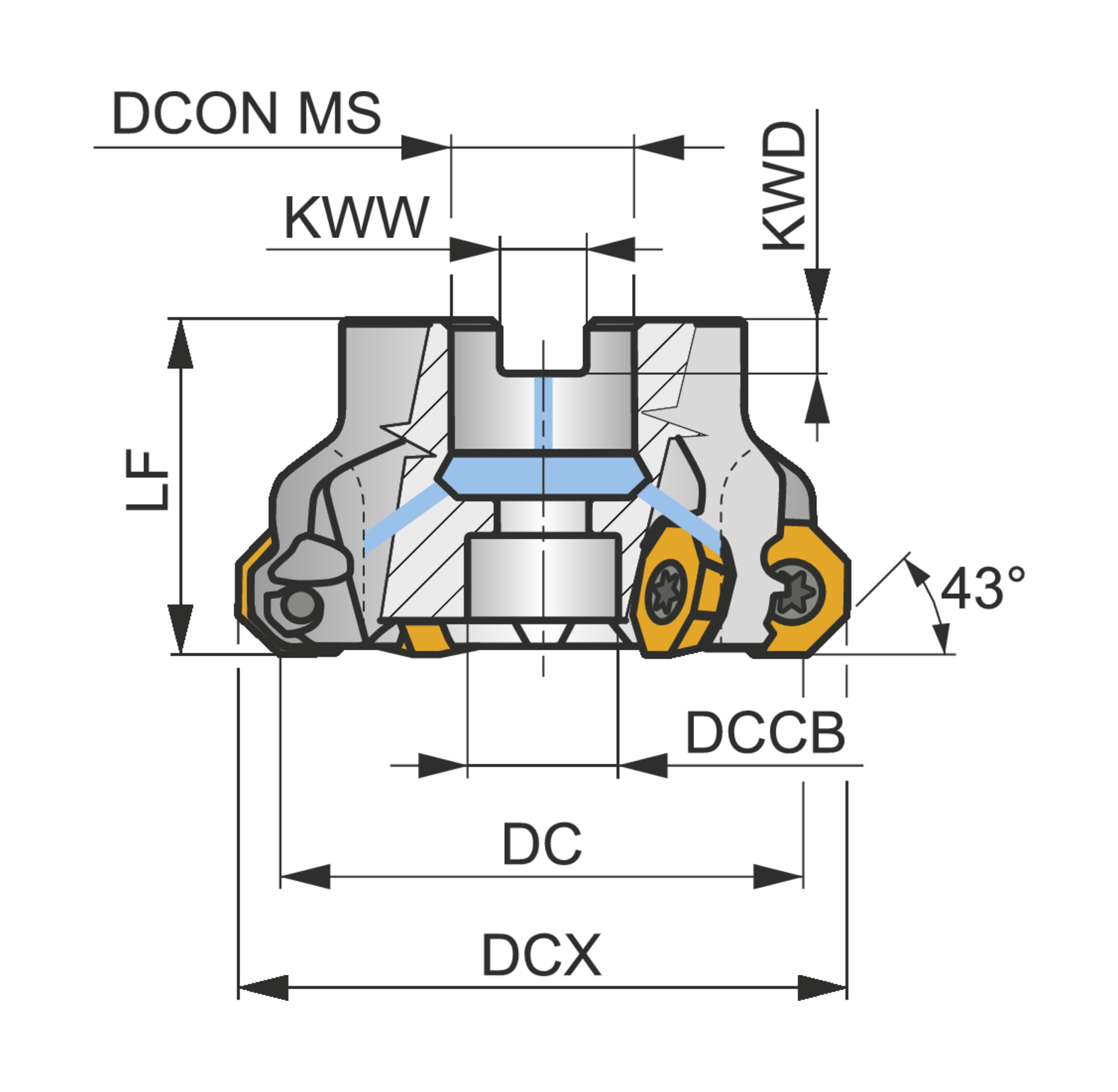

Axial rake angle (GAMP)
10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.496
Counterbore diameter connection bore - millimeter (DCCB)
38
Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Cutting diameter maximum - inch (DCX)
3.551
Cutting diameter maximum - millimeter (DCX)
90.2
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Keyway depth - millimeter (KWD)
7
Keyway width - millimeter (KWW)
12.4
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
6
Rotational speed maximum (RPMX)
8500
Shank
Shell mill DIN 8030 A
Face mill with double positive geometry which utilises 5 off OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 80 to maximum 90.2mm with 43° approach angle and 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9)mm
