Pramet 80A05R-S90AD16E-C 6760178 Shell Milling Cutter - Square Shoulder
MODEL 6760178
$663.20 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
12
Clamping Type Code (MTP)
Screw clamping through hole

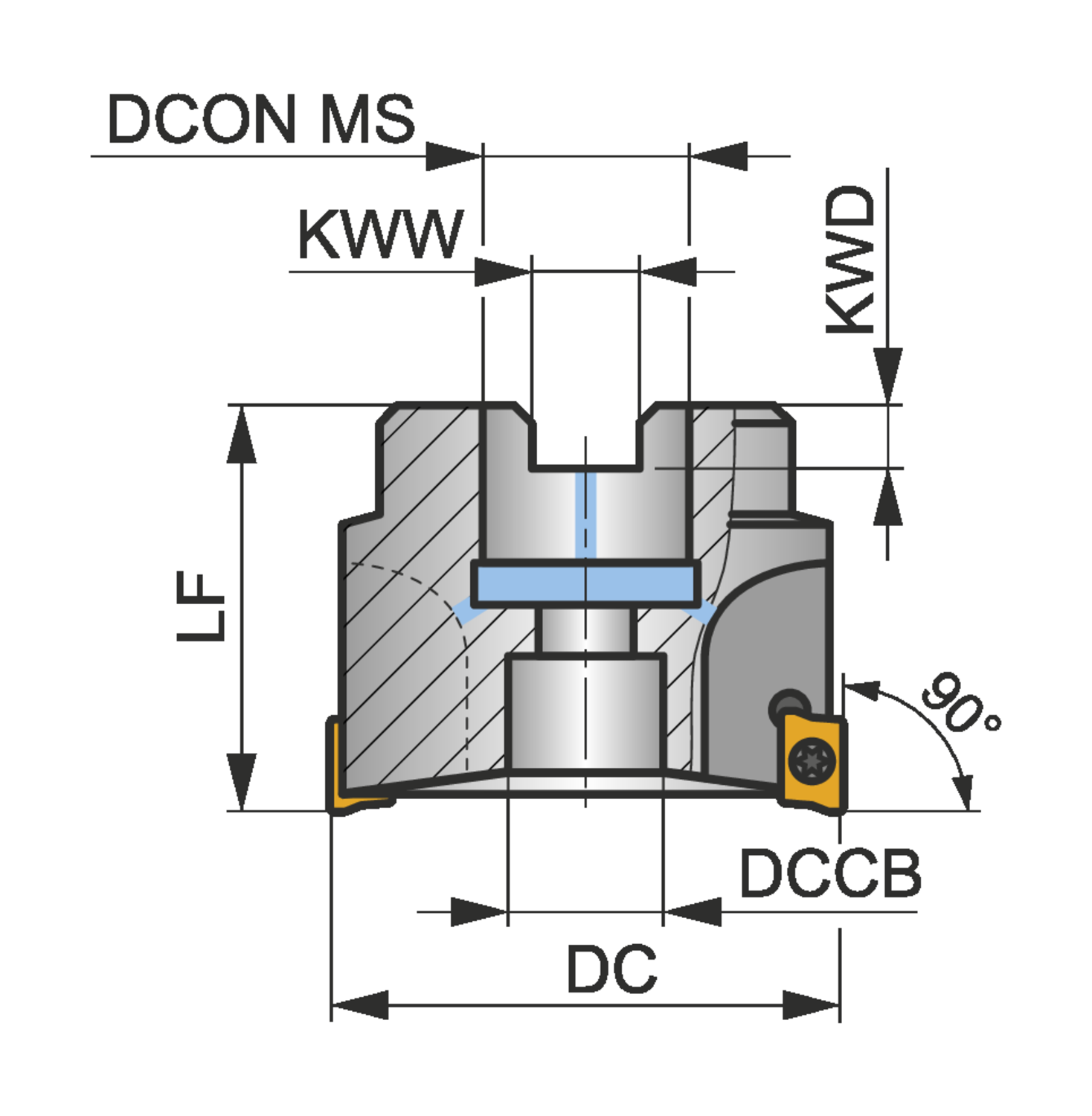

Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Connection size code machine side (CZC MS)
-
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.496
Counterbore diameter connection bore - millimeter (DCCB)
38
Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
5
Keyway depth - millimeter (KWD)
7
Keyway width - millimeter (KWW)
12.4
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
10400
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 5 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 80mm with 90° approach angle and 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant and differential pitch for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm
