Pramet 80A09R-S90SO09-C 6758311 Shell Milling Cutter - Square Shoulder
MODEL 6758311
$716.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

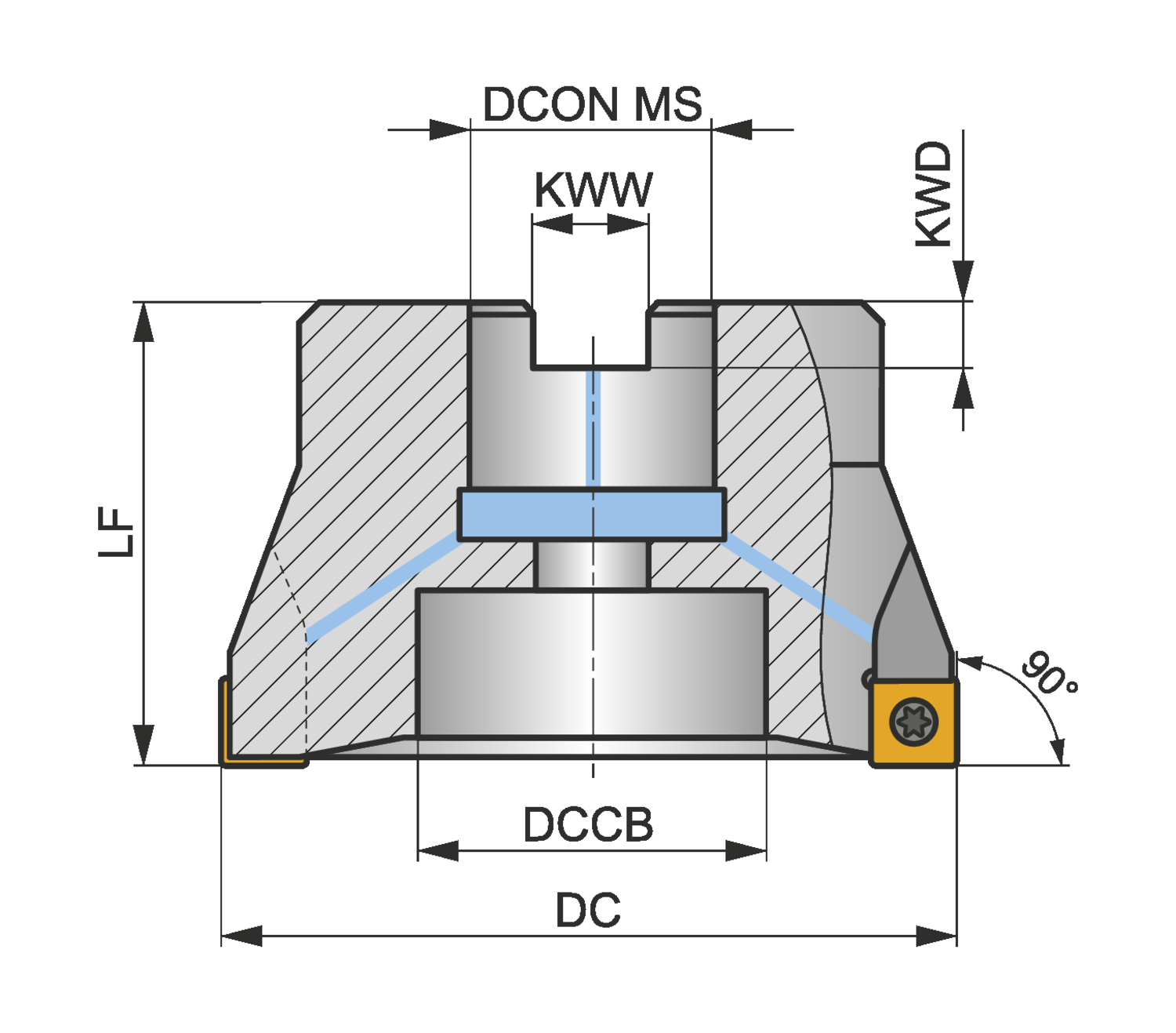

Axial rake angle (GAMP)
10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
38
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.496
Counterbore diameter connection bore - millimeter (DCCB)
38
Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
9
Keyway depth - millimeter (KWD)
7
Keyway width - millimeter (KWW)
12.4
Peripheral effective cutting edge count (ZEFP)
9
Radial rake angle (GAMF)
-8.1
Rotational speed maximum (RPMX)
11900
Shank
Shell mill DIN 8030 A
Shoulder mill with positve/negative geometry which utilises 9 off SOMT 09T3.. single-sided inserts, cutting diameter 80mm with 90° approach angle and 27mm connection bore according to DIN 8030-A, 50mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 8.0mm
