Pramet 80J4R165H50-SAD16E108-C 6922419 Helical End Milling Cutter - Square Shoulder
MODEL 6922419
$2,013.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

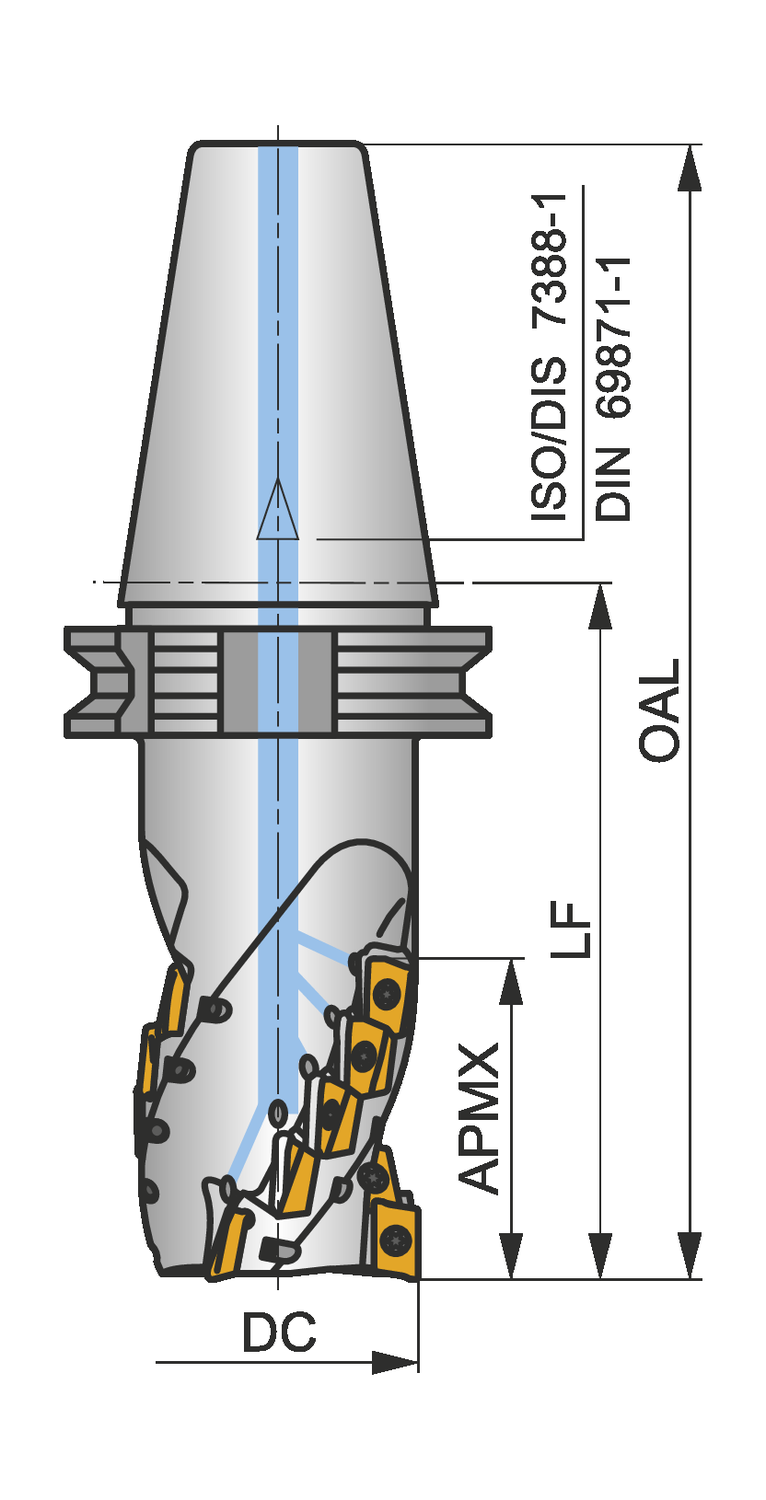

Axial rake angle (GAMP)
12
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
50
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Cutting pitch differential (CPDF)
1
Depth of cut maximum - millimeter (APMX)
108
Flute count (NOF)
4
Functional length - millimeter (LF)
165
Hand (Cutting direction)
Right
Insert index count (NOI)
32
Overall length - inch (OAL)
10.118
Overall length - millimeter (OAL)
257
Peripheral effective cutting edge count (ZEFP)
32
Radial rake angle (GAMF)
-6
Rotational speed maximum (RPMX)
10400
Shank
Arbor DIN 69871-1
Shoulder mill with extended flute with positve/negative geometry which utilises 32 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 80mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 108mm functional and 257mm overall length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 108mm
