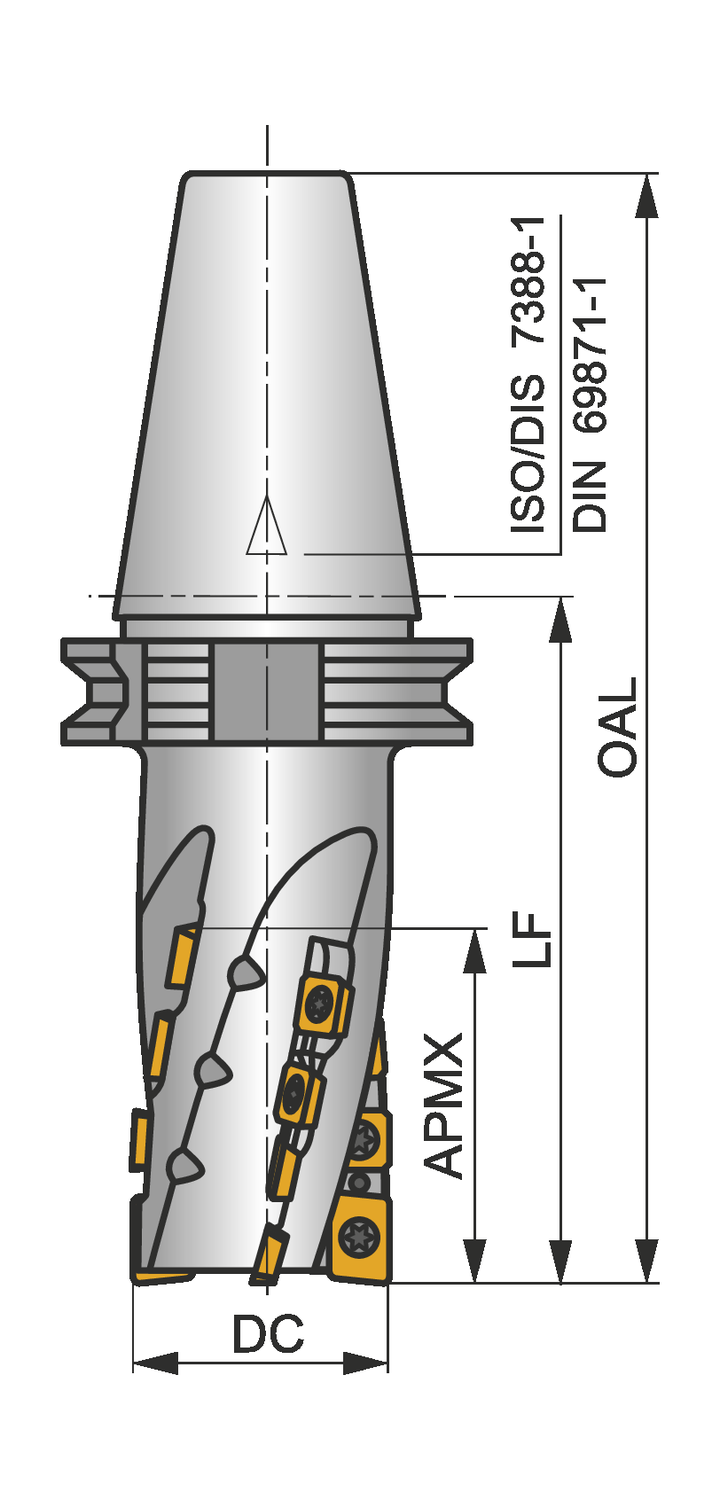

Pramet 80J6R155H50-SSAP95-A 6757753 Helical End Milling Cutter - Square Shoulder
MODEL 6757753
$1,611.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
7
Clamping Type Code (MTP)
Screw clamping through hole
Connection size code machine side (CZC MS)
50
Cutting diameter - inch (DC)
3.15
Cutting diameter - millimeter (DC)
80
Depth of cut maximum - millimeter (APMX)
95
Flute count (NOF)
6
Functional length - millimeter (LF)
155
Hand (Cutting direction)
Right
Insert index count (NOI)
33
Overall length - inch (OAL)
10.118
Overall length - millimeter (OAL)
257
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
7500
Shank
Arbor DIN 69871-1
Shoulder mill with extended flute with positve/negative geometry which utilises 3 off APE.
1504.. and 30 SPE.
1204.. single-sided inserts, cutting diameter 80mm with 90° approach angle and SK 50 taper shank according to ISO/DIS 7388-1, 95mm functional and 257mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 95mm
