$193.31 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

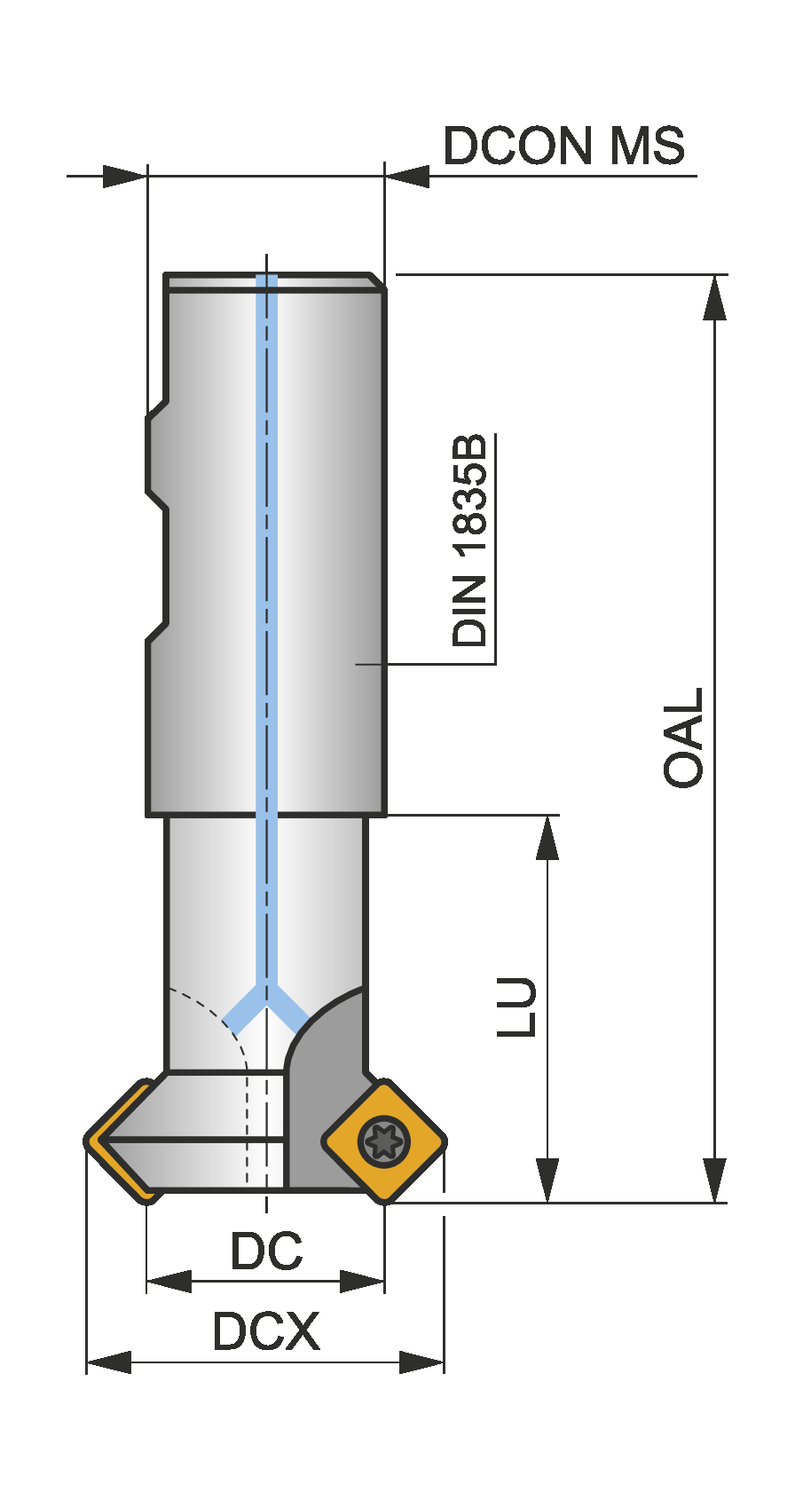

Axial rake angle (GAMP)
0
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
Cutting diameter maximum - inch (DCX)
0.807
Cutting diameter maximum - millimeter (DCX)
20.5
Hand (Cutting direction)
Right
Insert index count (NOI)
1
Overall length - inch (OAL)
3.543
Overall length - millimeter (OAL)
90
Peripheral effective cutting edge count (ZEFP)
1
Radial rake angle (GAMF)
0
Rotational speed maximum (RPMX)
37700
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
27
Chamfer mill with double negative geometry which utilises 1 off SOMT 09T3.. single-sided insert, cutting diameter 8 to maximum 20.5mm with 45° approach angle and 16mm Weldon shank according to DIN 1835B, 90mm overall length, through coolant for chamfering with a maximum depth of cut of 4.5mm
