Pramet 100E5R130M12-ISBN10-C 7455322 Modular Head for High Feed Milling
MODEL 7455322
$346.51 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

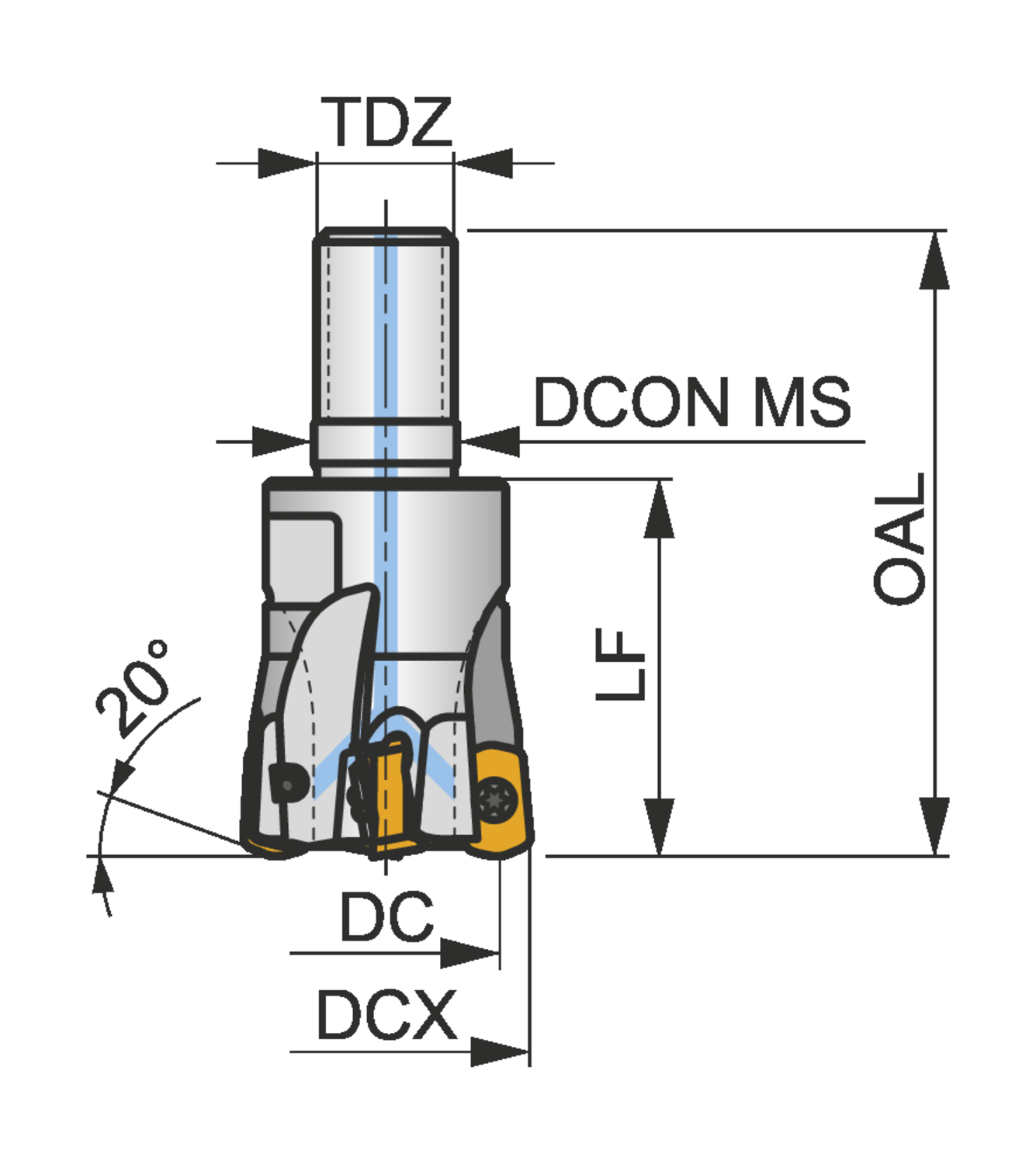

Axial rake angle (GAMP)
-9
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.492
Connection diameter - millimeter (DCON MS)
12.5
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.74
Cutting diameter - millimeter (DC)
18.8
Cutting diameter maximum - inch (DCX)
1
Cutting diameter maximum - millimeter (DCX)
25.4
Functional length - inch (LF)
1.299
Hand (Cutting direction)
Right
Overall length - inch (OAL)
2.165
Overall length - millimeter (OAL)
55
Peripheral effective cutting edge count (ZEFP)
5
Radial rake angle (GAMF)
-10
Rotational speed maximum (RPMX)
24600
Shank
Threaded coupling
Thread diameter size (TDZ)
M12
Tool cutting edge angle (KAPR)
20
High feed cutter with double negative geometry which utilises 5 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 1.00'' with 20° approach angle and M12 threaded shank for standard modular tool-holders, 1.299'' protrusion length, through coolant for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039''
