Pramet 140A08R-S19PD09-C 7049117 Shell Milling Cutter - High Feed
MODEL 7049117
$847.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

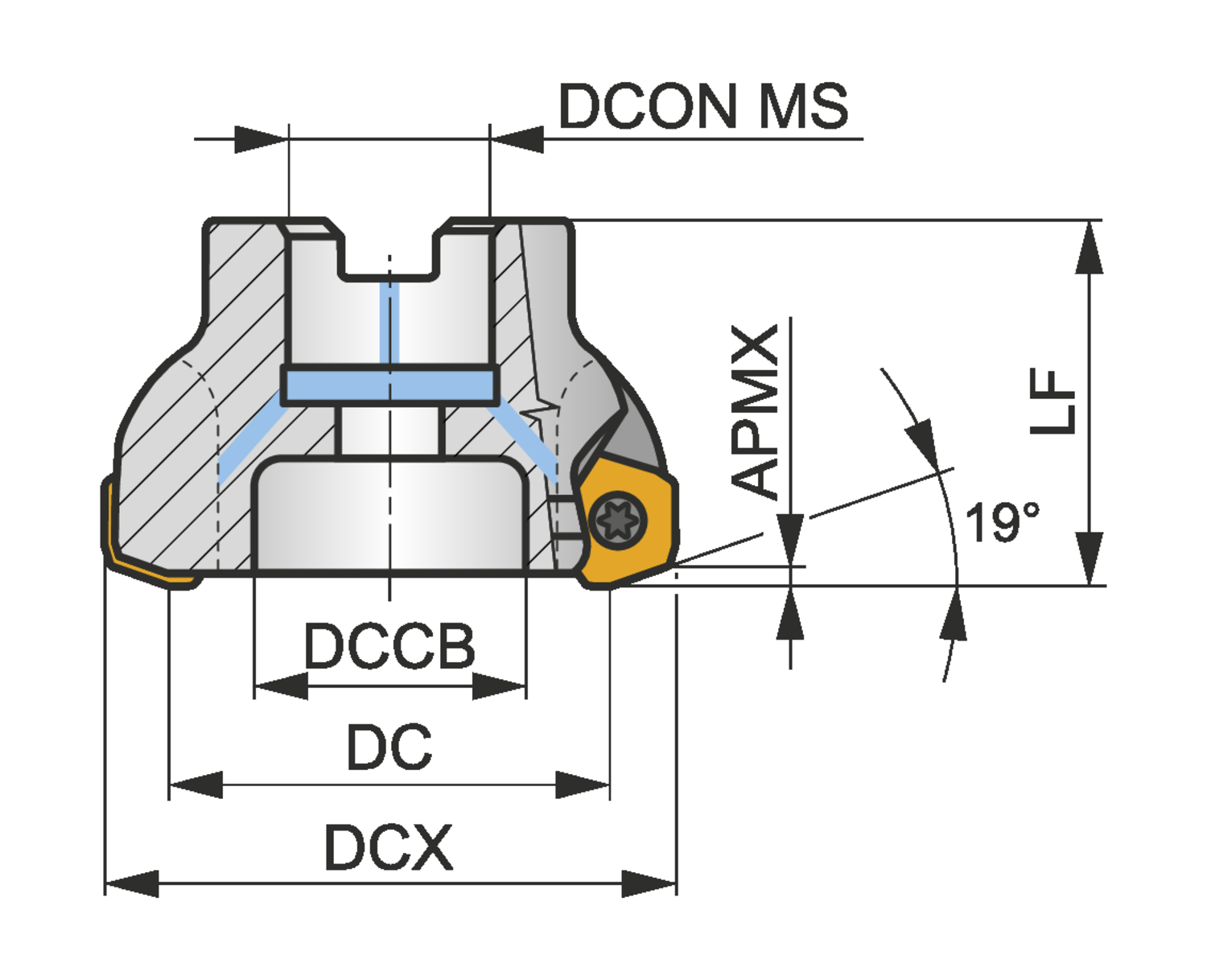

Axial rake angle (GAMP)
10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
1.417
Counterbore diameter connection bore - millimeter (DCCB)
36
Cutting diameter - inch (DC)
4.933
Cutting diameter - millimeter (DC)
125.3
Cutting diameter maximum - inch (DCX)
5.512
Cutting diameter maximum - millimeter (DCX)
140
Functional length - millimeter (LF)
63
Hand (Cutting direction)
Right
Insert index count (NOI)
8
Peripheral effective cutting edge count (ZEFP)
8
Radial rake angle (GAMF)
-1
Rotational speed maximum (RPMX)
6200
Shank
Shell mill DIN 8030 A
High feed cutter with positve/negative geometry which utilises 8 off PD.X 0905ZE.., PDKT 0905.. or PDMW 0905.. single-sided inserts, cutting diameter 140mm with 19° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant for face milling with a maximum depth of cut of 2.0mm
