Image for Illustration purposes only. Actual product may vary
Pramet 16E2R030A16-SBN10-C 7259577 End Milling Cutter - High Feed
MODEL 7259577
$282.76 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.63
Connection diameter - millimeter (DCON MS)
16
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.37
Cutting diameter - millimeter (DC)
9.4
Cutting diameter maximum - inch (DCX)
0.63
Cutting diameter maximum - millimeter (DCX)
16
Cutting pitch differential (CPDF)
1
Hand (Cutting direction)
Right
Insert index count (NOI)
2
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-12
Rotational speed maximum (RPMX)
31100
Shank
Cylindrical shank DIN 1835A
Tool cutting edge angle (KAPR)
20
Usable Length - millimeter (LU)
30

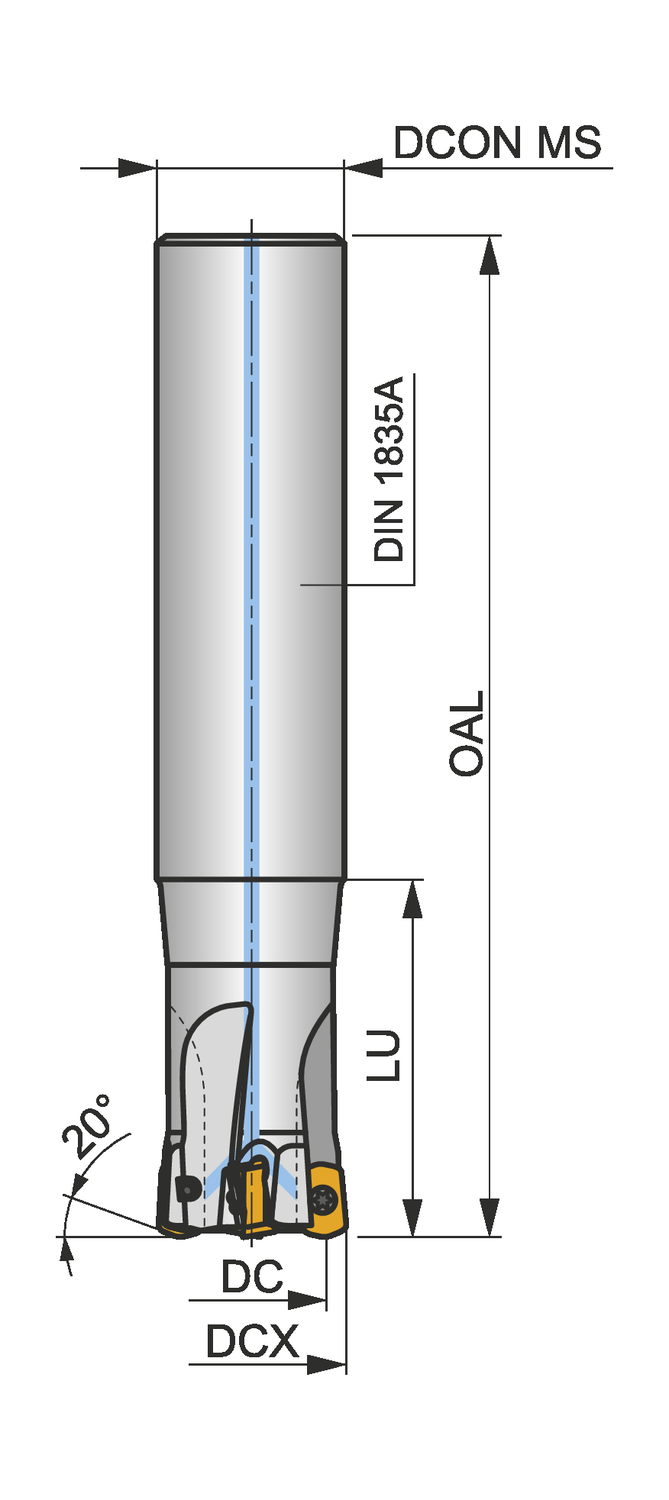

High feed cutter with positve/negative geometry which utilises 2 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 16mm with 20° approach angle and 16mm parallel shank according to DIN 1835A, 30mm functional and 100mm overall length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0mm
