Image for Illustration purposes only. Actual product may vary

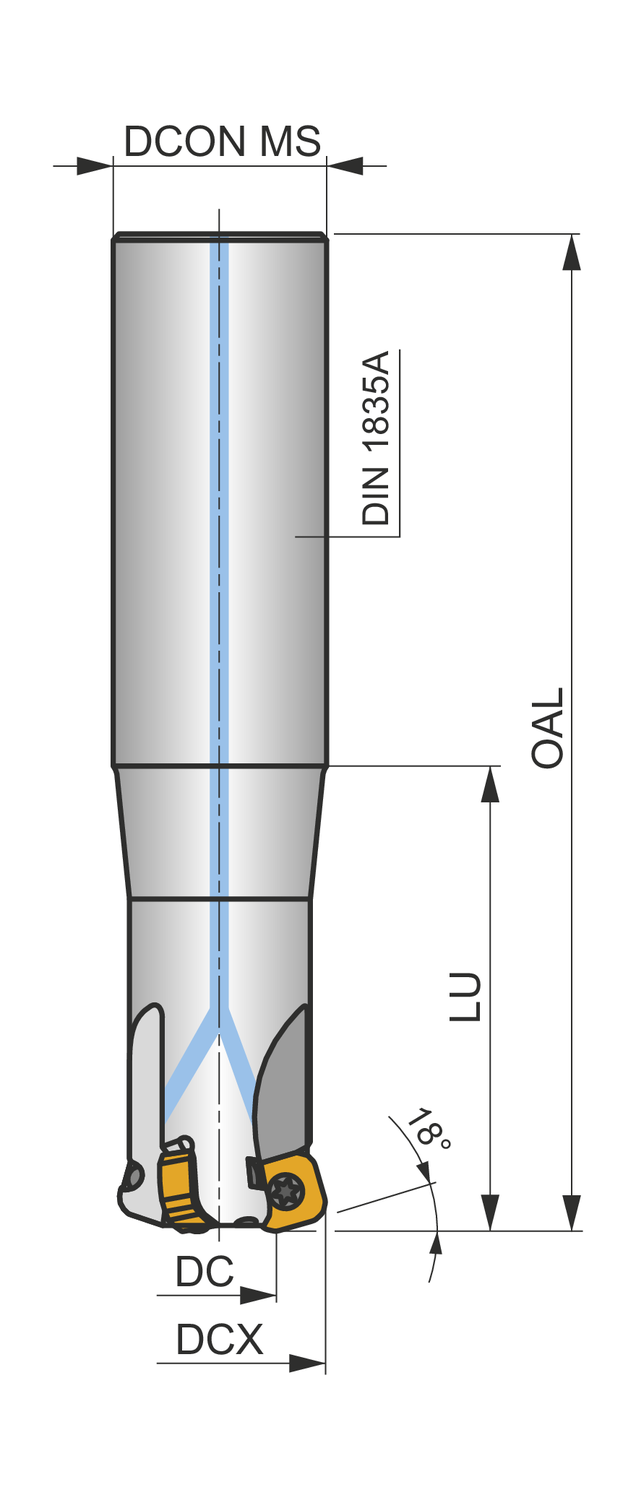

Pramet 32E3R070A32-SSN11-C 7799390 End Milling Cutter - High Feed
MODEL 7799390
$378.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.72
Cutting diameter - millimeter (DC)
18.3
Cutting diameter maximum - inch (DCX)
1.26
Cutting diameter maximum - millimeter (DCX)
32
Hand (Cutting direction)
Right
Insert index count (NOI)
3
Overall length - inch (OAL)
5.906
Overall length - millimeter (OAL)
150
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
-11.5
Rotational speed maximum (RPMX)
17500
Shank
Cylindrical shank DIN 1835A
Tool cutting edge angle (KAPR)
18
Usable Length - millimeter (LU)
70
High feed cutter with double negative geometry which utilises 3 off SNGX 1104.. double-sided inserts, cutting diameter 32mm with 18° approach angle and 32mm parallel shank according to DIN 1835A, 70mm functional and 150mm overall length, through coolant for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.7mm
