Pramet 35E6R043M16-SBN10-C modular head for high feed milling, 1.118 in cutting diameter, 0.039 in maximum depth of cut, 6 inserts, M16 threaded shank, 20° approach angle, through coolant, differential pitch. Article 7452557.
MODEL 7452557
$466.81 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

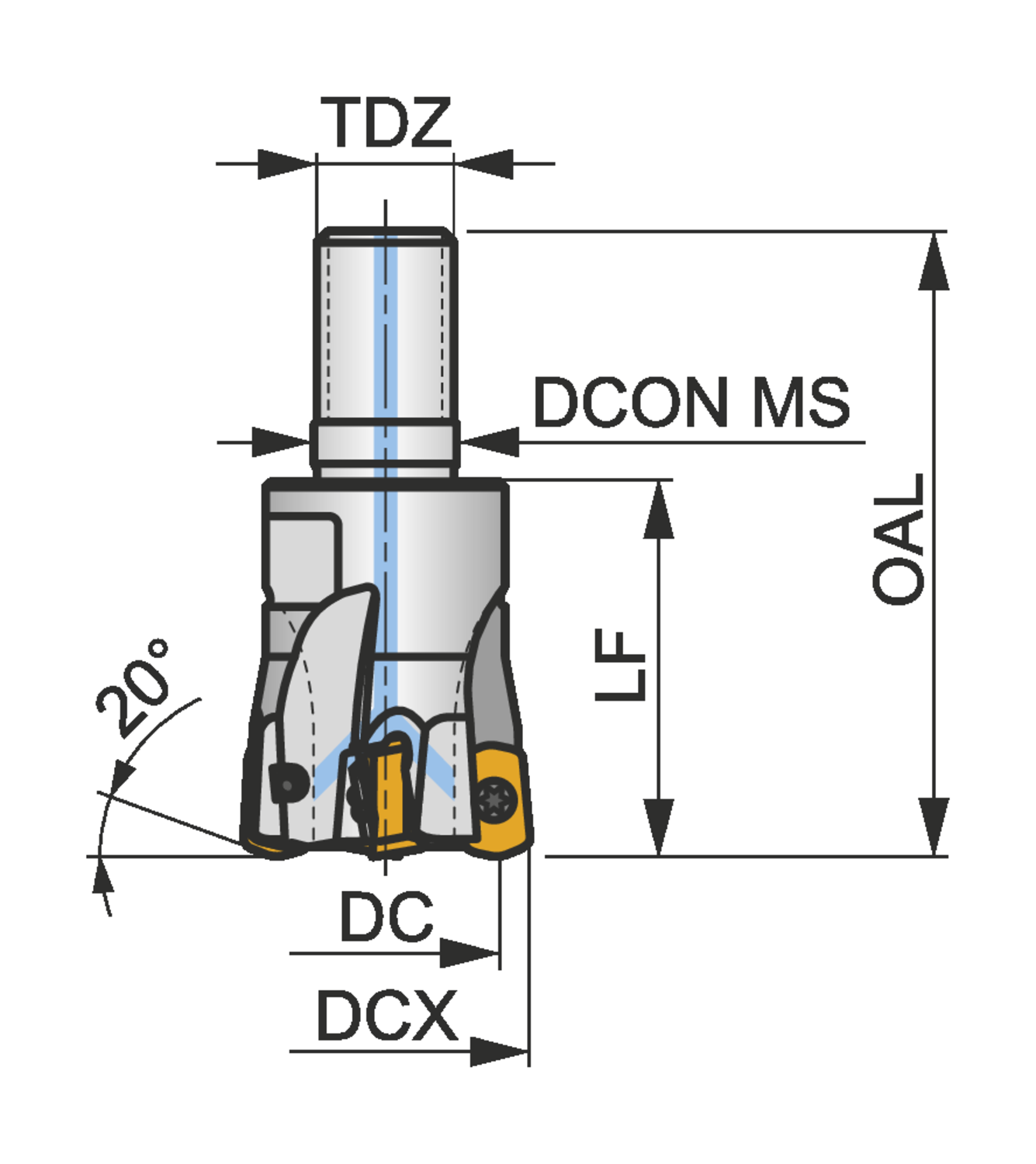

Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.669
Connection diameter - millimeter (DCON MS)
17
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
1.118
Cutting diameter - millimeter (DC)
28.4
Cutting diameter maximum - inch (DCX)
1.378
Cutting diameter maximum - millimeter (DCX)
35
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
43
Hand (Cutting direction)
Right
Insert index count (NOI)
6
Overall length - inch (OAL)
2.598
Overall length - millimeter (OAL)
66
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-7.5
Rotational speed maximum (RPMX)
21000
Shank
Threaded coupling
Thread diameter size (TDZ)
M16
Tool cutting edge angle (KAPR)
20
High feed cutter with positve/negative geometry which utilises 6 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 35mm with 20° approach angle and M16 threaded shank for standard modular tool-holders, 43mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0mm
