Pramet 66A06R-SMOSN11-C 7799346 Shell Milling Cutter - High Feed
MODEL 7799346
$601.51 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

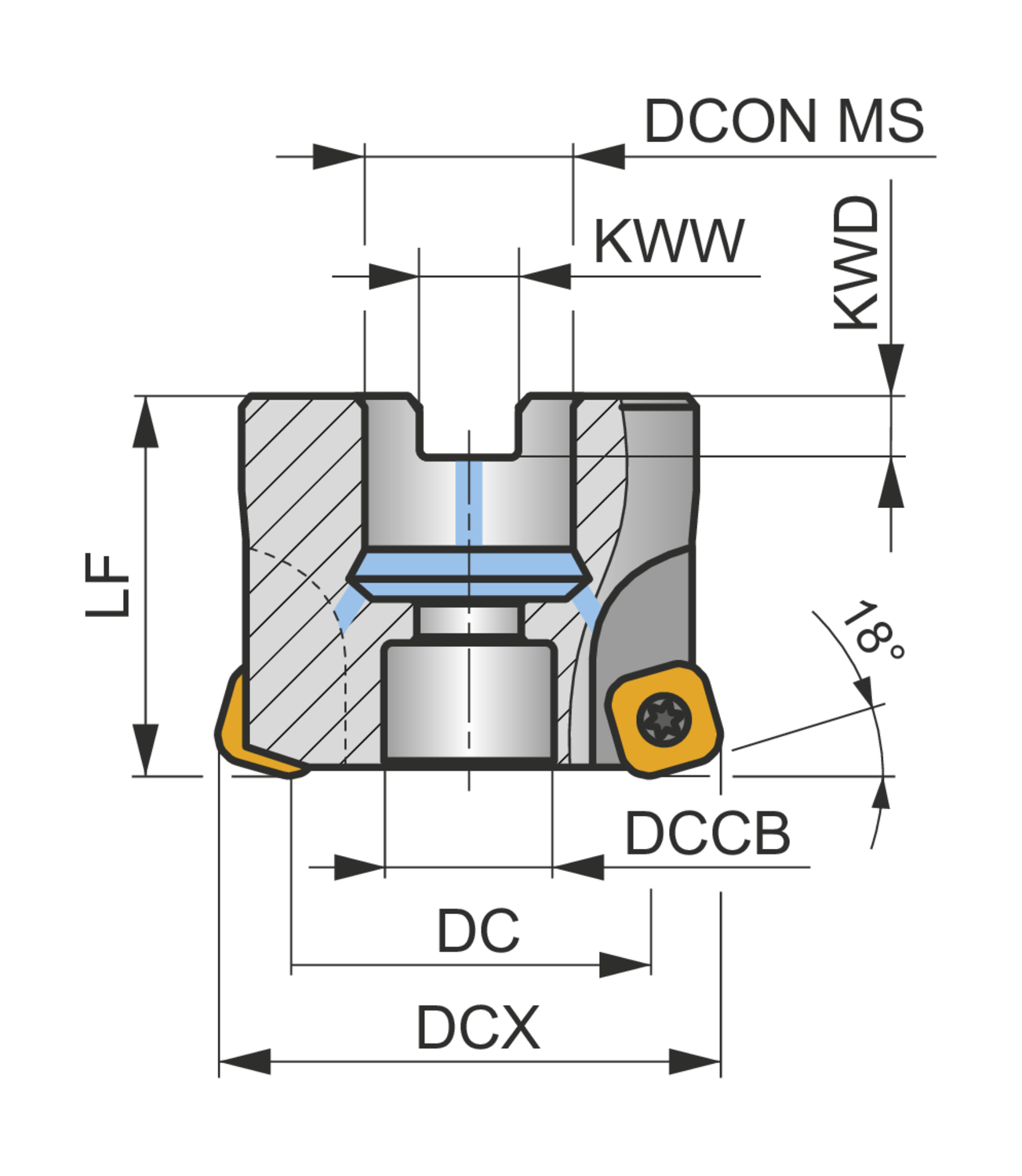

Axial rake angle (GAMP)
-10
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Coolant supply property (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.713
Counterbore diameter connection bore - millimeter (DCCB)
18.1
Cutting diameter - inch (DC)
2.051
Cutting diameter - millimeter (DC)
52.1
Cutting diameter maximum - inch (DCX)
2.598
Cutting diameter maximum - millimeter (DCX)
66
Cutting pitch differential (CPDF)
1
Functional length - millimeter (LF)
50
Hand (Cutting direction)
Right
Insert index count (NOI)
6
Keyway depth - millimeter (KWD)
7
Keyway width - millimeter (KWW)
12.4
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
-10
Rotational speed maximum (RPMX)
12200
Shank
Shell mill DIN 8030 A
Tool cutting edge angle (KAPR)
18
High feed cutter with double negative geometry which utilises 6 off SNGX 1104.. double-sided inserts, cutting diameter 66mm with 18° approach angle and 27mm connection bore according to DIN 8030-C, 50mm protrusion length, through coolant and differential pitch for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.7mm
