Pramet 50T05R-C90SD12X55 6761739 Helical Shell Milling Cutter - Square Shoulder
MODEL 6761739
$1,377.82 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
8
Clamping Type Code (MTP)
Top clamping

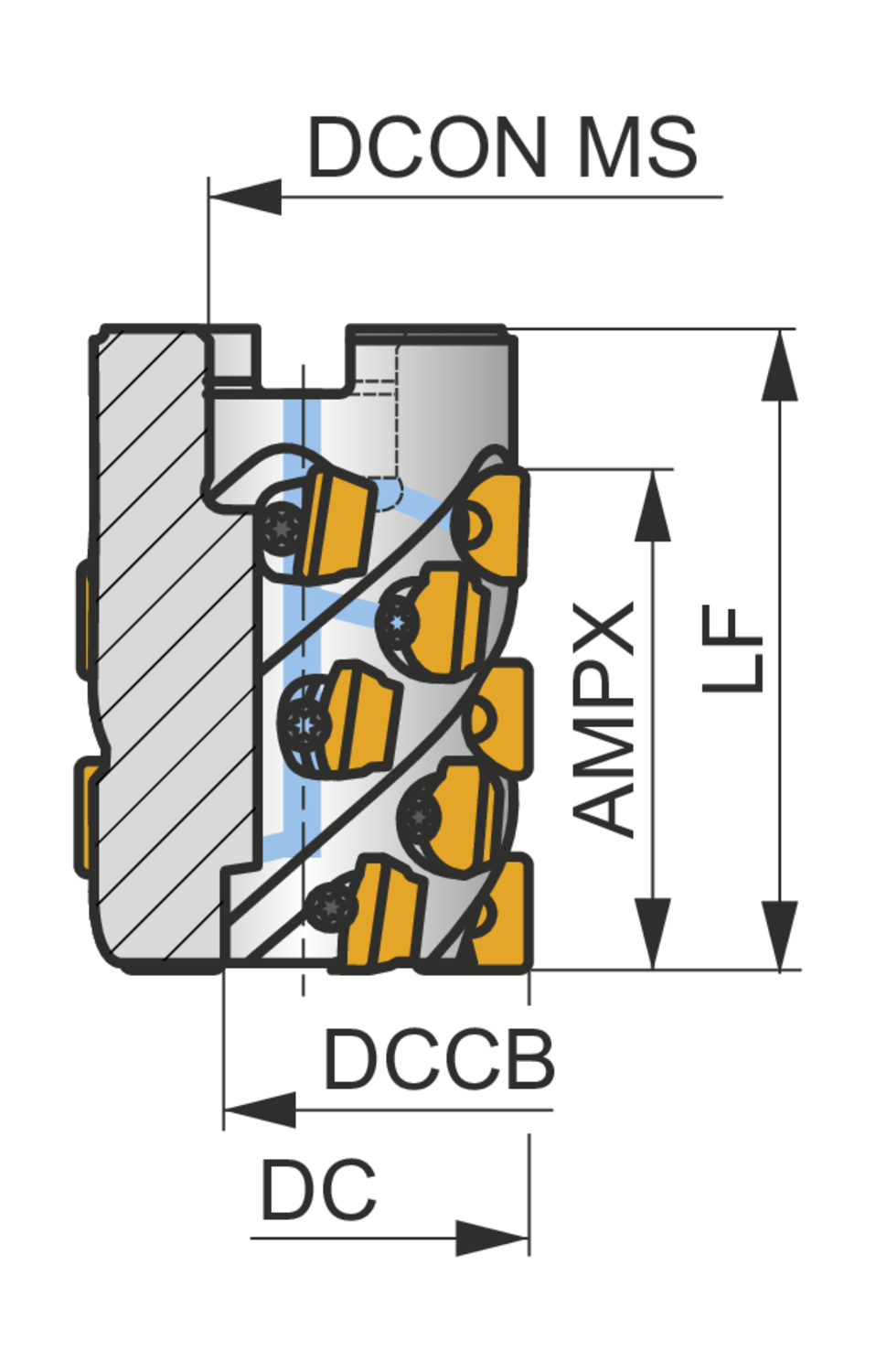

Connection diameter - inch (DCON MS)
0.866
Connection diameter - millimeter (DCON MS)
22
Connection size code machine side (CZC MS)
-
Cooling (CSP)
1
Counterbore diameter connection bore - inch (DCCB)
0.709
Counterbore diameter connection bore - millimeter (DCCB)
18
Cutting diameter - inch (DC)
1.969
Cutting diameter - millimeter (DC)
50
Depth of cut maximum - millimeter (APMX)
54.9
Flute count (NOF)
5
Functional length - millimeter (LF)
78
Hand (Cutting direction)
Right
Insert index count (NOI)
25
Peripheral effective cutting edge count (ZEFP)
25
Radial rake angle (GAMF)
-5
Rotational speed maximum (RPMX)
3200
Shank
Shell mill DIN 8030 – helical mill
Shoulder mill with extended flute with positve/negative geometry which utilises 25 off SDGX 12 or SDMX 12 single-sided inserts, cutting diameter 50mm with 90° approach angle and 22mm connection bore according to DIN 8030, 78mm protrusion length for deep shoulder milling and deep slot milling with a maximum depth of cut of 54,9mm
