Pramet 802D-1750-350-S150 6801118 Indexable Drill 2 x D
MODEL 6801118
$570.66 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

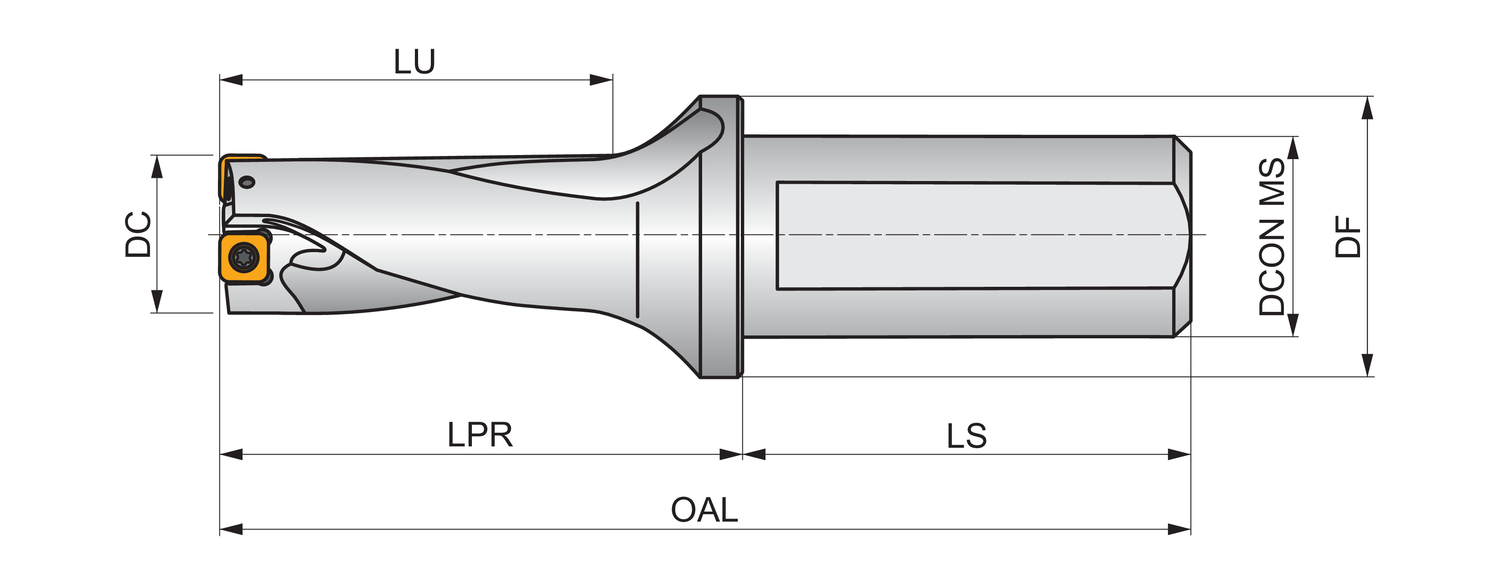

Adjustment limit maximum - inch (ADJLX)
0.02
Adjustment limit minimum - inch (ADJLN)
0.02
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.5
Connection diameter - millimeter (DCON MS)
38.1
Connection diameter tolerance machine side (TCDCONMS)
h6
Cooling (CSP)
1
Cutting diameter - inch (DC)
1.75
Cutting diameter - millimeter (DC)
44.5
Depth of cut maximum - inch (APMX)
3.5
Overall length - inch (OAL)
7.094
Overall length - millimeter (OAL)
180
Protruding length - inch (LPR)
4.457
Shank
Cylindrical Shank ISO 9766
Shank length - inch (LS)
2.638
Usable length (ULDR)
2
Usable Length - inch (LU)
3.894
Indexable insert drill which utilises an XPET 12T3.. insert in the central pocket and a SCET 1204.. insert in the peripheral pocket, cutting diameter 1.750'', with a 1.500'' cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 2 x D
