Pramet A 02290 400 6760644 Boring System Head - Integral Pocket
MODEL 6760644
$505.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

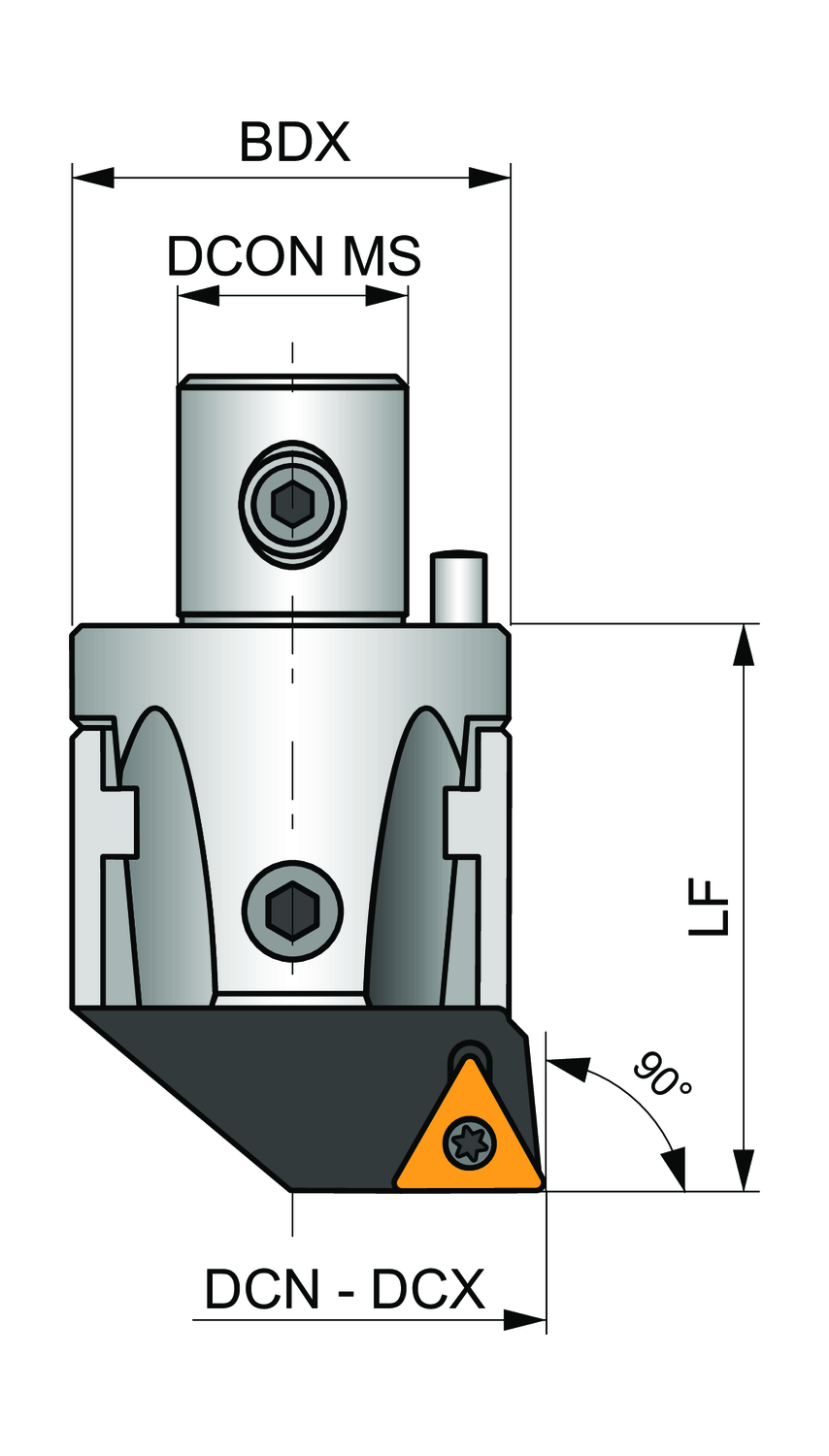

Body diameter maximum - millimeter (BDX)
22
Clamping Type Code (MTP)
System SP
Connection diameter - inch (DCON MS)
0.472
Connection diameter - millimeter (DCON MS)
12
Connection size code machine side (CZC MS)
22
Cutting diameter maximum - inch (DCX)
1.181
Cutting diameter maximum - millimeter (DCX)
30
Cutting diameter minimum - millimeter (DCN)
24
Cutting edge count (CEDC)
1
Functional length - millimeter (LF)
34
Insert group used in the tool
CC.. 0602..
Possible use
Roughing
Primary use
Finishing
Tool cutting edge angle (KAPR)
90
Integral pocket type boring head size 22 with 90° approach angle and 2 micron adjusting accuracy for finishing within a diamerter range of 24 to 30mm, to hold a CC.. 0602.. insert for longitudinal boring with and without shoulder
