Pramet BT 340 042 160 R 6761433 Boring System Shank - MAS 403 BT
MODEL 6761433
$510.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

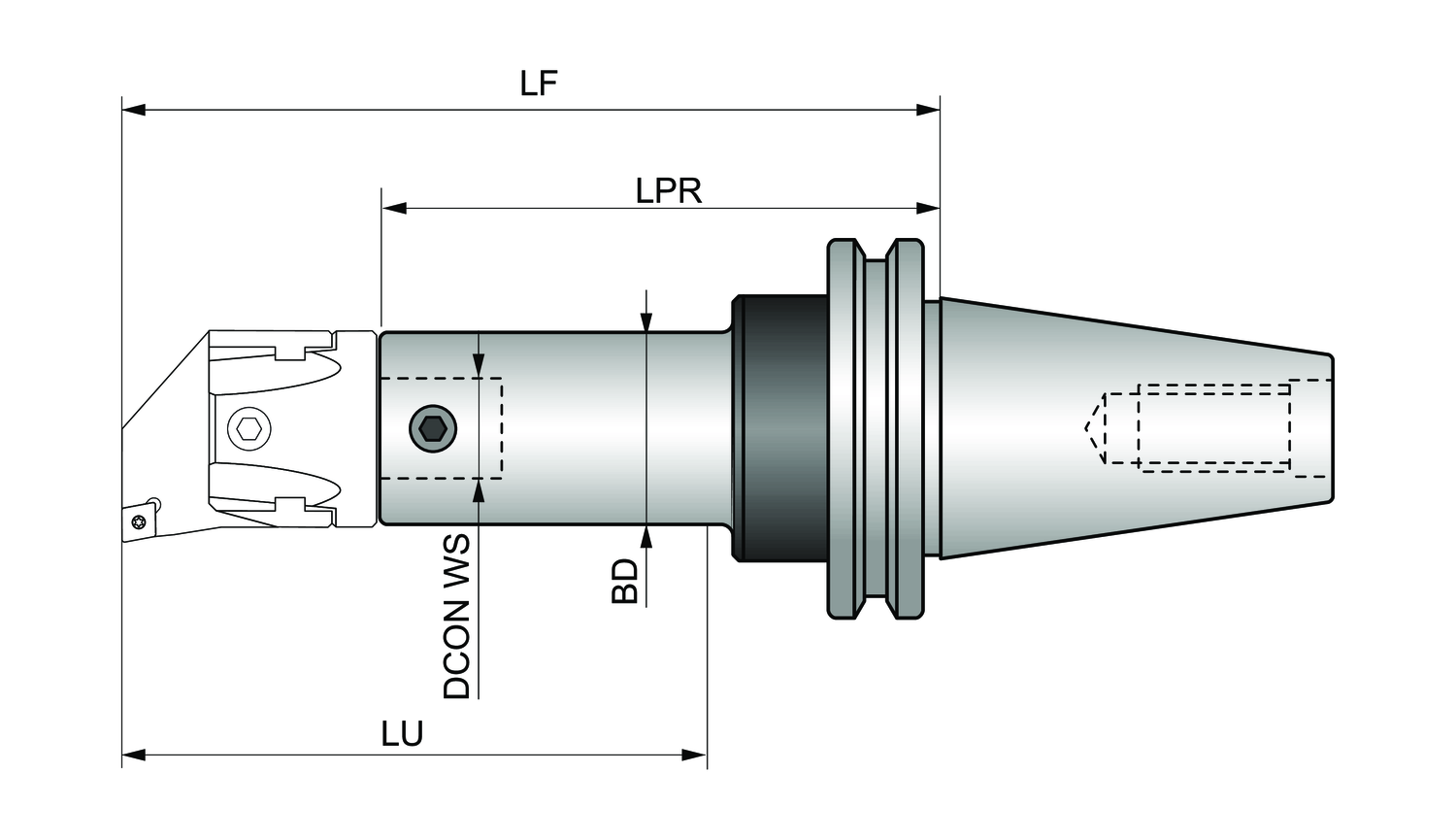

Body diameter - inch (BD)
1.654
Body diameter - millimeter (BD)
42
Connection diameter workpiece side - millimeter (DCON WS)
24
Connection size code machine side (CZC MS)
42
Coolant supply property (CSP)
1
Functional length - millimeter (LF)
190
Protruding length - millimeter (LPR)
134
Taper size
40
Usable Length - millimeter (LU)
160
Tool shank for modular boring system size 42 with BT 40 taper shank according to JIS B 6339, through coolant feed and 160 protrusion length (including the boring head )
