Pramet D 02790 409 6760657 Boring System Head - Integral Pocket
MODEL 6760657
$727.98 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

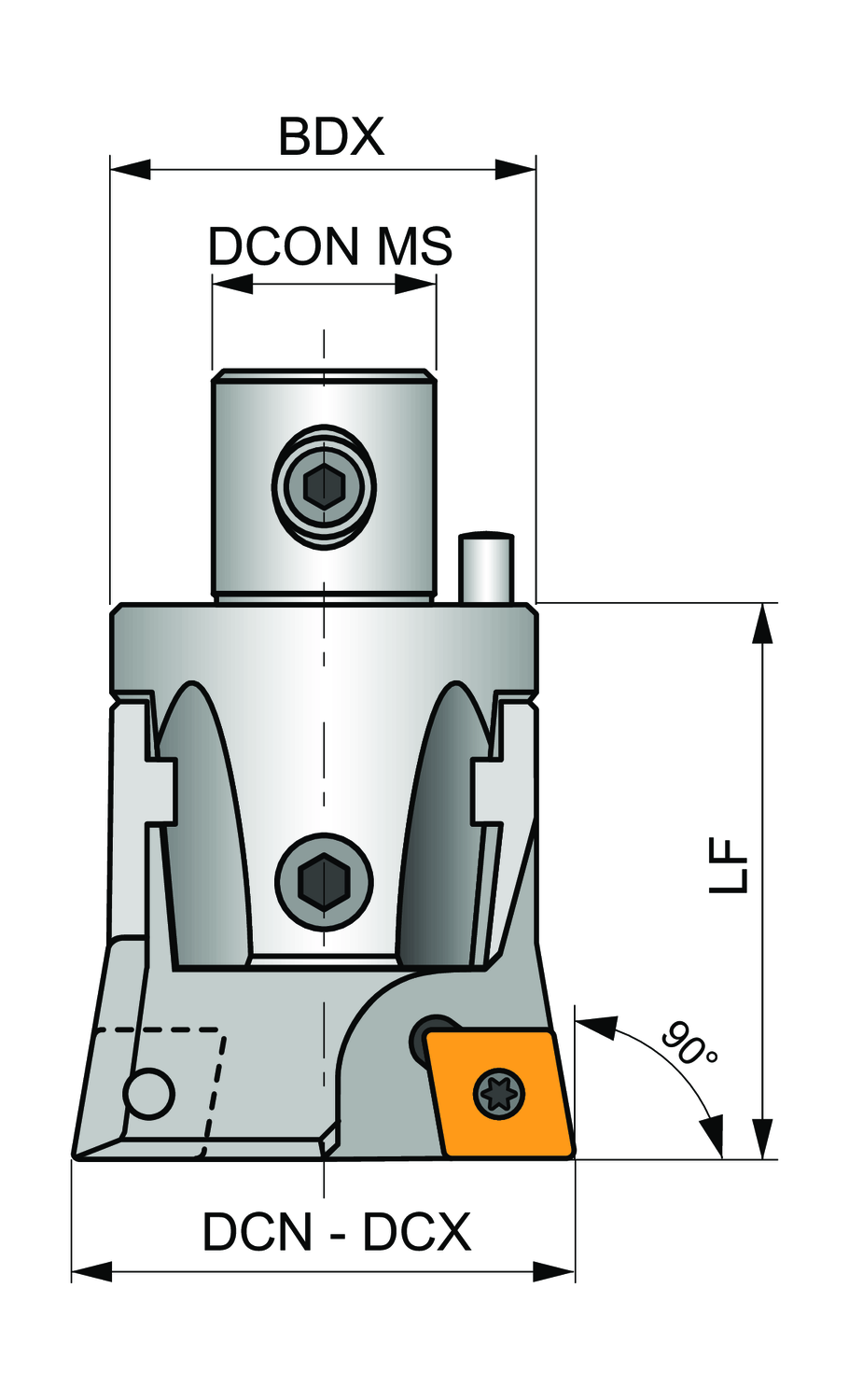

Body diameter maximum - millimeter (BDX)
27
Clamping Type Code (MTP)
System SP
Connection diameter - inch (DCON MS)
0.591
Connection diameter - millimeter (DCON MS)
15
Connection size code machine side (CZC MS)
27
Cutting diameter maximum - inch (DCX)
1.575
Cutting diameter maximum - millimeter (DCX)
40
Cutting diameter minimum - millimeter (DCN)
29
Cutting edge count (CEDC)
2
Functional length - millimeter (LF)
42
Insert group used in the tool
CC.. 09T3..
Possible use
Finishing
Primary use
Medium machining
Tool cutting edge angle (KAPR)
90
Integral pocket type boring head size 27 with 90° approach angle and synchronized adjustment for roughing within a diamerter range of 29 to 40mm, to hold CC.. 09T3.. inserts for longitudinal boring with and without shoulder
