Pramet XPET 11T3AP:D8345 6754657 Indexable Drill Insert
MODEL 6754657
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$13.73 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
D8345
Coating process
PVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended

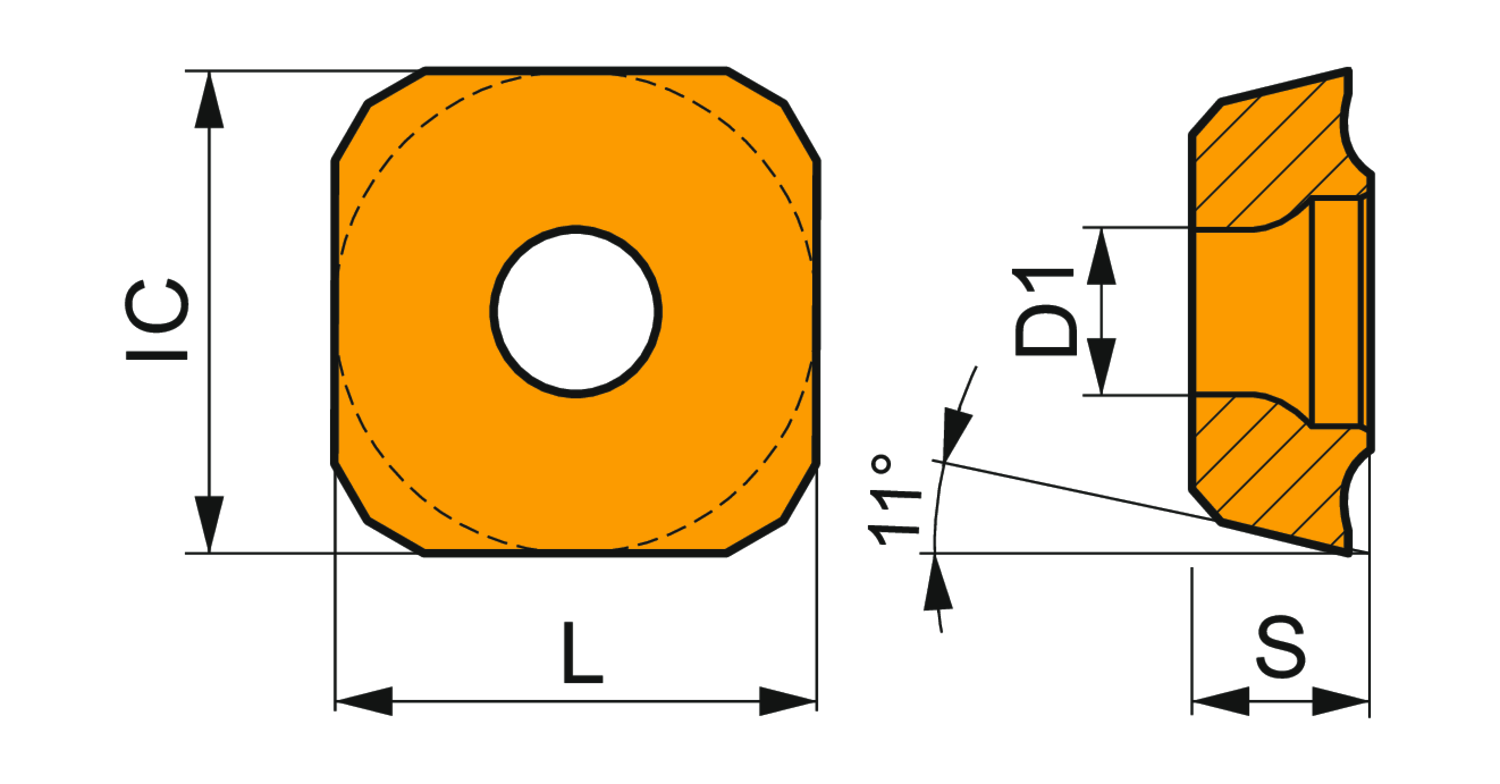

Cutting edge length - inch (L)
0.453
Cutting edge length - millimeter (L)
11.5
Feed maximal - millimeter
0.22
Feed minimal - millimeter
0.09
Feed_MAX_IMP_NUM
0.009
Feed_MIN_IMP_NUM
0.004
Fixing hole diameter - inch (D1)
0.154
Fixing hole diameter - millimeter (D1)
3.9
Inscribed circle diameter - inch (IC)
0.453
Inscribed circle diameter - millimeter (IC)
11.509
Insert shape code (SC)
X - Special design
Insert thickness - inch (S)
0.156
Insert thickness - millimeter (S)
3.97
Drilling insert to fit the central pocket of PRAMET 80.D indexable drills within a diameter range from 32 up to 38mm, D8345 PVD coated fine grained WC-Co carbide within ISO-grade range P30-P50 for machining of steel
