Image for Illustration purposes only. Actual product may vary
Pramet LDGN 130560-R45:6640 6753295 Scarfing Insert
MODEL 6753295
$58.23 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
6640

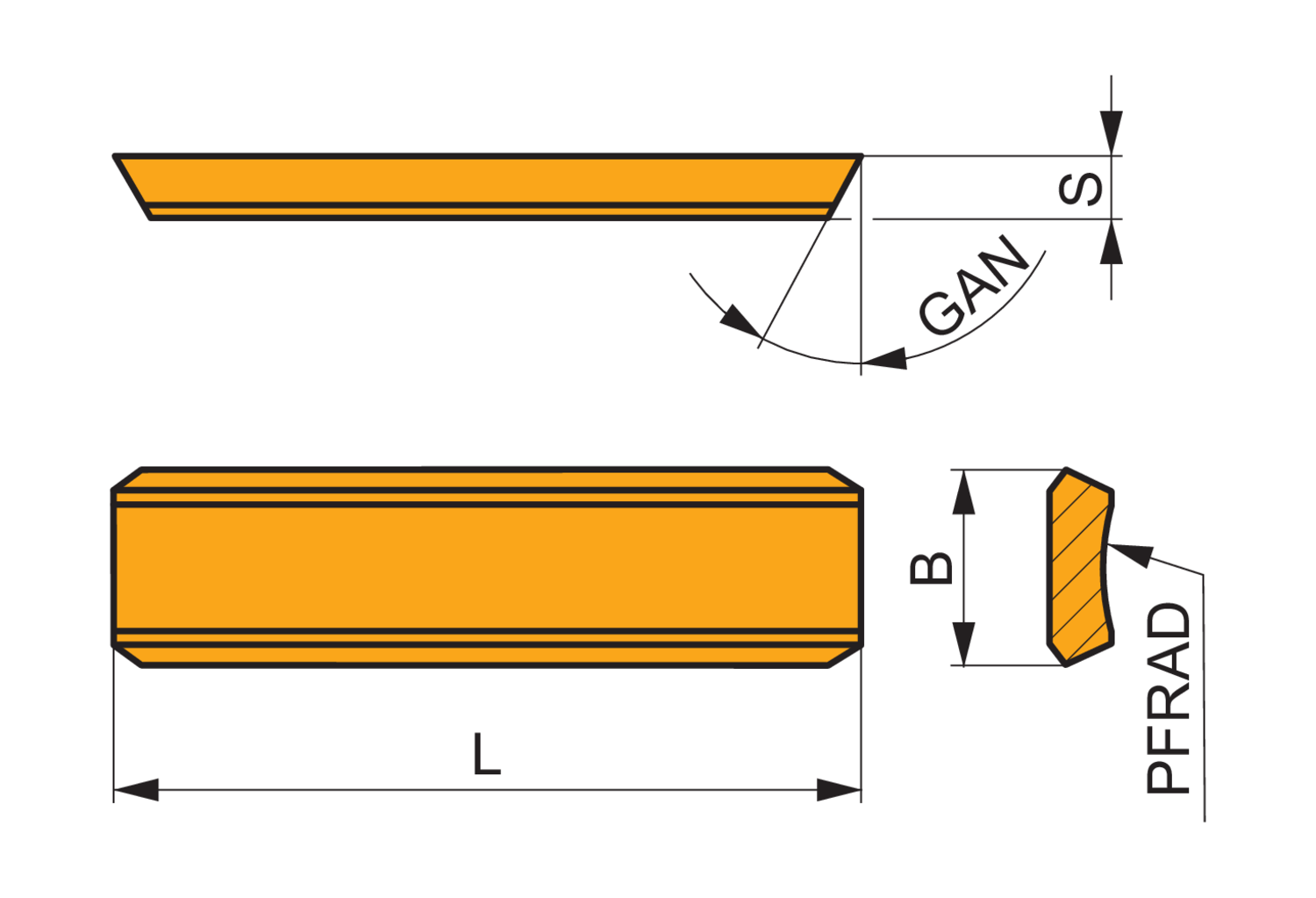

Insert length - inch (INSL)
2.362
Insert length - millimeter (INSL)
60
Insert shape code (SC)
L - rectangular
Insert thickness - inch (S)
0.197
Insert thickness - millimeter (S)
5
Insert width - inch (W1)
0.591
Insert width - millimeter (W1)
15
OutsideDiameterWorkpiece_MAX_MET_NUM
81
OutsideDiameterWorkpiece_MIN_MET_NUM
61
Profile radius - inch (PRFRAD)
1.772
Profile radius - millimeter (PRFRAD)
45
Single-sided re-grindable scarfing blade, 60mm long rectangle with a main cutting edge length of 13.05mm, 5mm thick and a working radius of 45mm for tube diameters from 52 to 65mm, 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for deburring the outside of steel and stainless-steel tubes and pipes
