Pramet RNGH 381200-MR:T7325 7347224 Bar Peeling Insert
MODEL 7347224
This product has a minimum order quantity of (3 minimum) This is the minimum order quantity available when purchasing this product.
$66.47 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(3 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
MR
Coating
T7325
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended

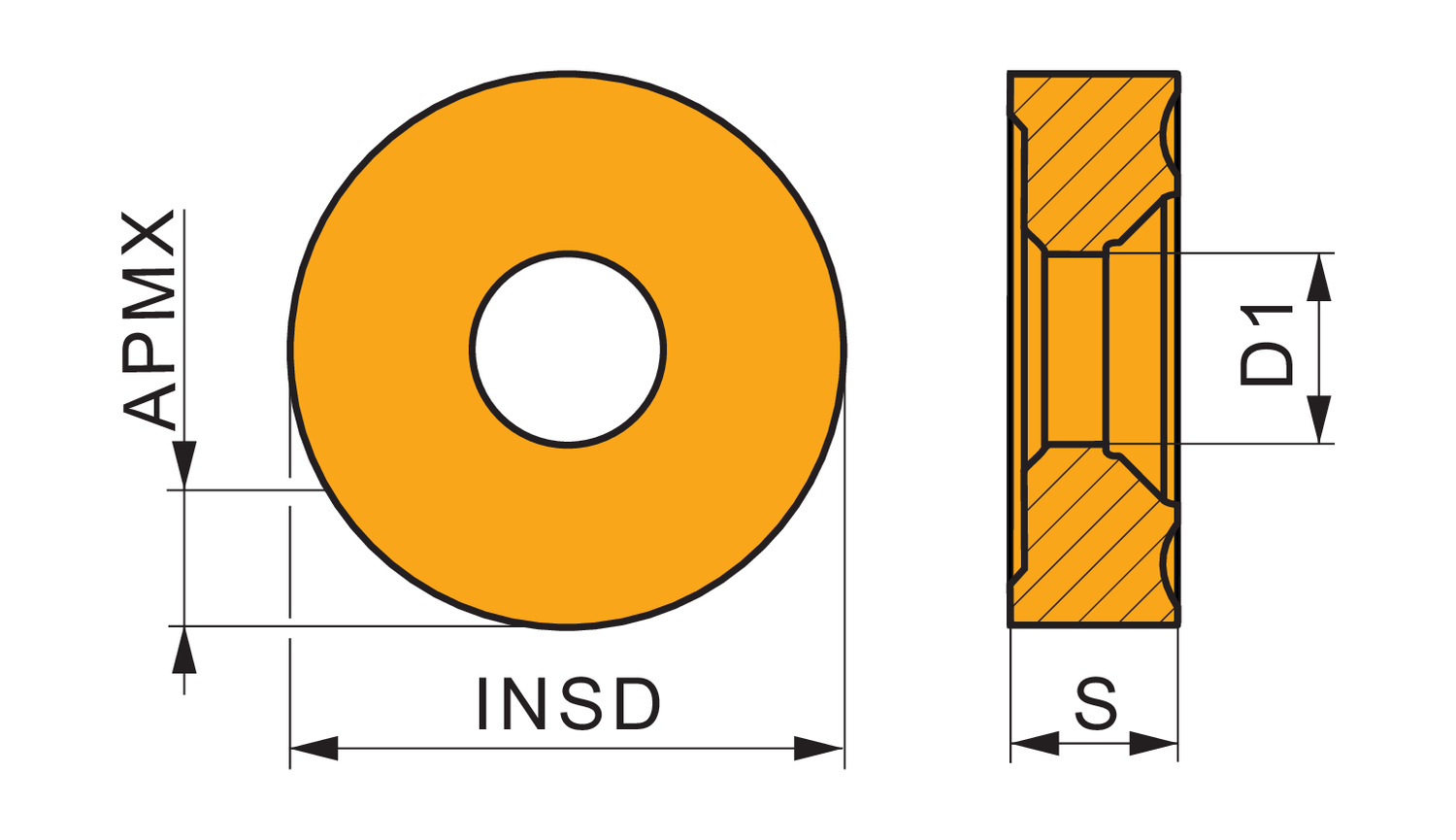

Depth of cut maximum - inch (APMX)
0.315
Depth of cut maximum - millimeter (APMX)
8
Depth of cut minimum - inch (APMN)
0.059
Depth of cut minimum - millimeter (APMN)
1.5
Feed maximal - millimeter
13
Feed minimal - millimeter
2.2
Feed_MAX_IMP_NUM
0.512
Feed_MIN_IMP_NUM
0.087
Fixing hole diameter - inch (D1)
0.5
Fixing hole diameter - millimeter (D1)
12.7
Insert diameter - inch (INSD)
1.5
Insert diameter - millimeter (INSD)
38.1
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.5
Insert thickness - millimeter (S)
12.7
Single-sided negative barpeeling insert, round with a diameter of 38.1mm, 12.7mm thick for 8mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker MR, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for stainless-steels
