Pramet WNGF 201380-MM-S01:T7325 7317944 Bar Peeling Insert
MODEL 7317944
This product has a minimum order quantity of (3 minimum) This is the minimum order quantity available when purchasing this product.
$87.97 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(3 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
MM-S01
Coating
T7325
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Very positive effect on tool life - cooling is recommended

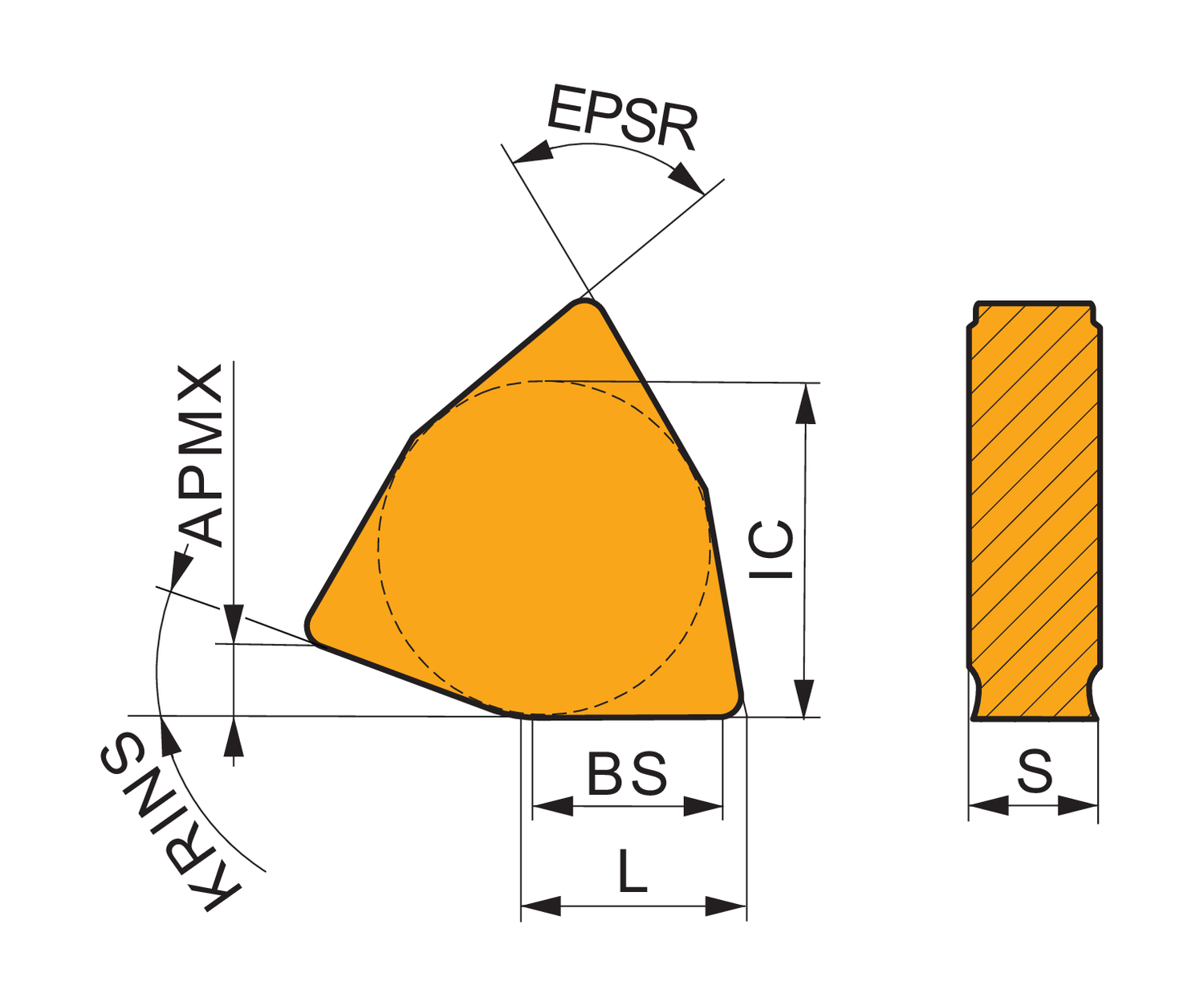

Cutting edge length - inch (L)
0.787
Cutting edge length - millimeter (L)
20
Depth of cut maximum - inch (APMX)
0.315
Depth of cut maximum - millimeter (APMX)
8
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
12
Feed minimal - millimeter
2
Feed_MAX_IMP_NUM
0.472
Feed_MIN_IMP_NUM
0.079
Inscribed circle diameter - inch (IC)
1.25
Inscribed circle diameter - millimeter (IC)
31.75
Insert included angle (EPSR)
85
Insert shape code (SC)
W - trigon
Insert thickness - inch (S)
0.512
Insert thickness - millimeter (S)
13
Major cutting edge angle (KRINS)
25
Wiper edge length - inch (BS)
0.591
Wiper edge length - millimeter (BS)
15
Double-sided negative barpeeling insert, 80° trigon with inscribed circle diameter of 31.75mm, 13mm thick for 8mm depth of cut, indexing accuracy according to ISO-tolerance class-G, chip-breaker MM with S01 cutting edge preperation, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for high strength stainless-steels
