Dormer A1194.1 7189829 Stub Drill - Double Ended 4.10 mm
MODEL 7189829
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$4.23 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 120°
Basic Standard
DIN 1897
Coating
Steam Tempered

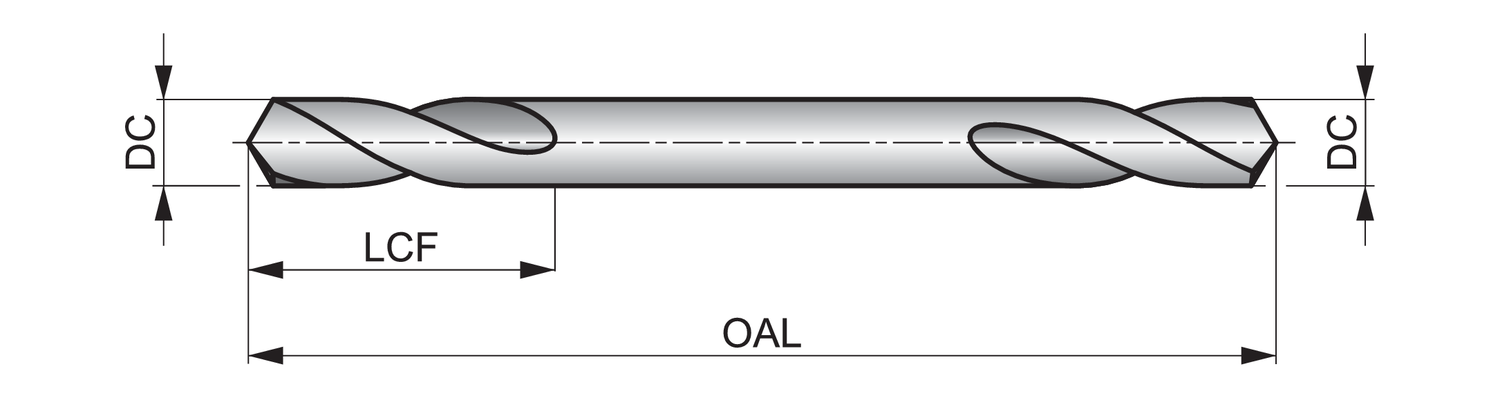

Connection diameter - inch (DCON MS)
0.1614
Connection diameter - millimeter (DCON MS)
4.1
Cutting diameter - inch (DC)
0.1614
Cutting diameter - millimeter (DC)
4.1
Cutting diameter tolerance class (TCDC)
h8
EDP number
47189829
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
0.5512
Length chip flute - millimeter (LCF)
14
Material application
P - Steel and cast steel
Material code (BMC)
HSS
MID number
7189829
Ordering code ANSI
A1194.1
Overall length - inch (OAL)
2.1654
Overall length - millimeter (OAL)
55
Point Angle (SIG)
120
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1.25
The A119 is a short drill designed primarily for drilling holes through sheet metal.
It is manufactured from High Speed steel, making it suitable for drilling in many materials including steel, aluminium and stainless steels.
The steam oxide finish helps stop workpiece material from sticking to the cutting edge of the drill.
The A119 has a 120 degree conventional point to aid self-centering, and the core of the drill is thinner than normal which helps reduce the amount of force needed when drilling.
The drill comes in a number of metric diameters and is designed without the normal body clearance to improve hole roundness when drilling sheet metal.
Finally, the drill is actually double ended, so you can use either end to drill, giving you twice the tool life!
