Dormer A1254.0X250 5968737 118° Extra Length Drill 4.00 mm x 250 mm
MODEL 5968737
$32.30 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
BS 328
Coating
Steam Tempered
Connection (shank) description
Cylindrical shank

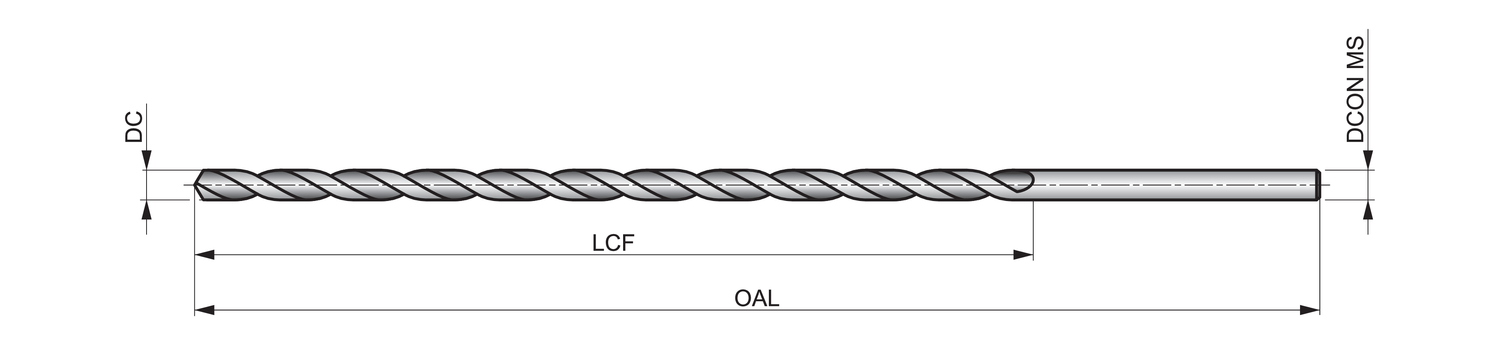

Connection diameter - millimeter (DCON MS)
4
Cutting diameter - inch (DC)
0.1575
Cutting diameter - millimeter (DC)
4
Cutting diameter tolerance class (TCDC)
h8
Drill Length
XL
EDP number
20210
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
7.874
Length chip flute - millimeter (LCF)
200
Material
HSS
Material application
P - Steel and cast steel
MID number
5968737
Ordering code ANSI
A1254.0X250
Overall length - inch (OAL)
9.8425
Overall length - millimeter (OAL)
250
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
10
The A125 drill from Dormer is classed as an extra long drill and is recommended for very deep holes and applications where the hole to be drilled is difficult to reach.
The A125 has a conventional 118 degree point, providing strength and saving money on easy regrinds.
A steam oxide finish helps stop work piece material from sticking to the cutting edge of the drill.
The A125 is manufactured from premium high speed steel and can be used in a variety of applications on a number of different materials, including steels, aluminium and stainless steels.
Please note – because of the extra length, we recommend the A125 is less suitable for hand-held drilling.
* Note: All drills below 2.2mm are bright
