Dormer A92011/64 5972413 130° PFX Stub Drill 11/64 inch
MODEL 5972413
$6.45 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 130°
Basic Standard
DIN/ANSI
Coating
Bright

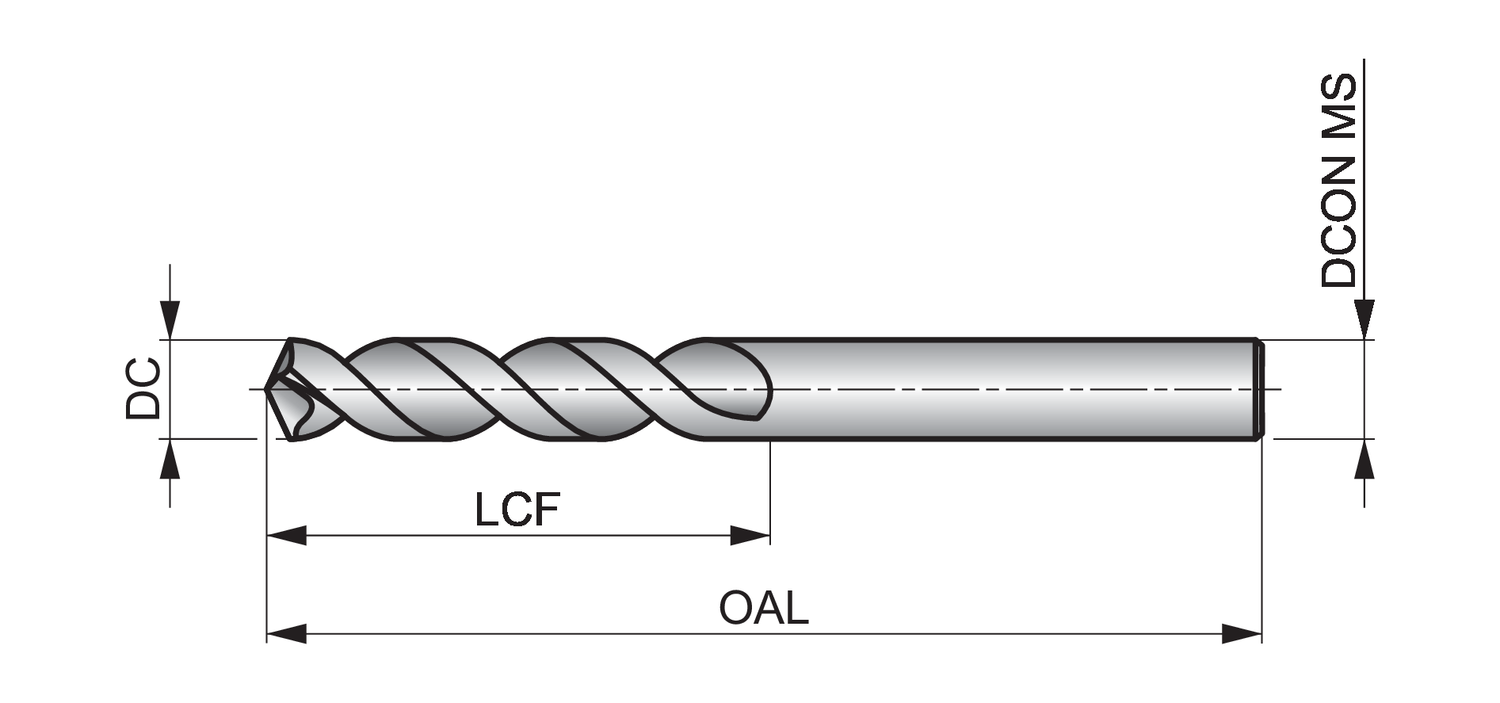

Connection diameter - inch (DCON MS)
0.172
Connection diameter - millimeter (DCON MS)
4.37
Cutting diameter - fractional inch (DC)
11/64
Cutting diameter - inch (DC)
0.1719
Cutting diameter - millimeter (DC)
4.37
Cutting diameter tolerance class (TCDC)
h8
EDP number
51047
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
1.063
Length chip flute - millimeter (LCF)
27
Material
HSS-E
Material application
M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5972413
Ordering code ANSI
A92011/64
Overall length - inch (OAL)
2.126
Overall length - millimeter (OAL)
54
Point Angle (SIG)
130
Shank
Cylindrical shank
Spiral form
Quick Spiral
Usable length (ULDR)
3
The A920 short drill from Dormer is available in an extensive range of fractional and metric diameters.
Part of Dormer’s PFX range of drills, the A920 has a parabolic flute design which means deeper holes can be drilled in a single pass.
The tool is made from High Speed cobalt and can be used to drill a number of different materials including aluminium, steels and stainless steels, whilst the bright finish means workpiece material will not stick to the cutting edge of the tool.
The A920 has a 130 degree point angle which helps to self-center the tool on the hole and means less force is needed to drill into the workpiece.
The A920 PFX drill is a high performance tool and produces high quality and accurate holes (to H10 hole tolerance) even at high speeds and feeds
