Dormer B16124.0 5986815 Machine Reamer 8FL 24.00 mm
MODEL 5986815
$159.82 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningAchievable hole tolerance (TCHA)
H7
Basic Standard
DIN 208

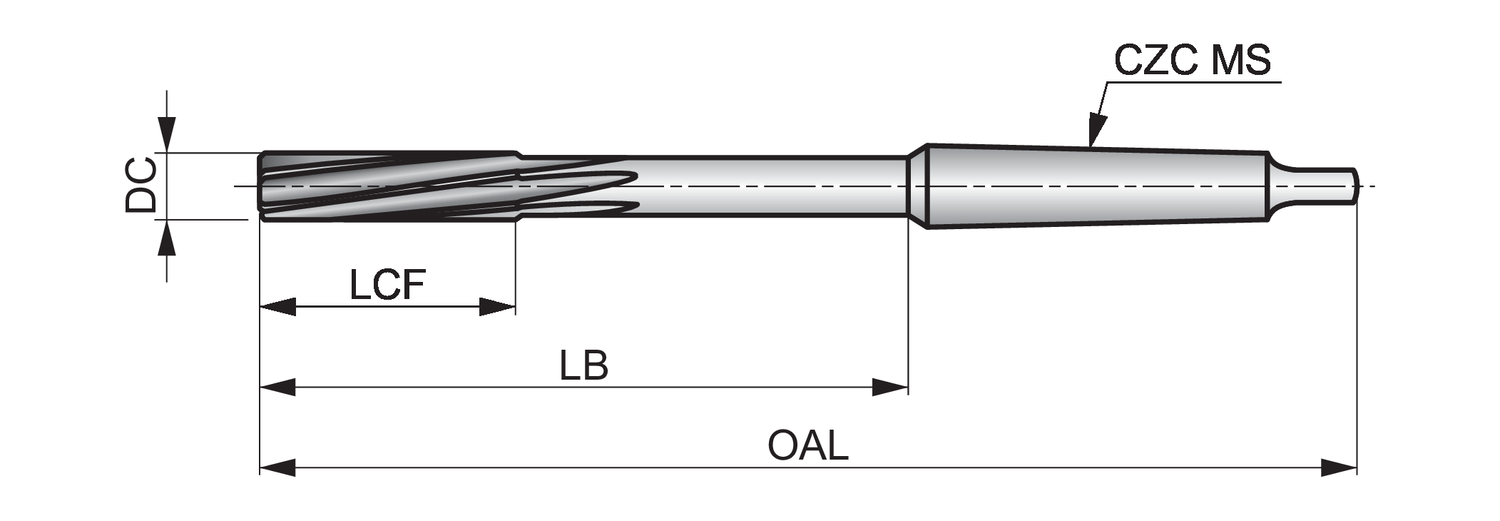

Body length - millimeter (LB)
169
Coating
Bright
Connection size code machine side (CZC MS)
MK 3
Cutting diameter - inch (DC)
0.9449
Cutting diameter - millimeter (DC)
24
EDP number
49877
Flute count (NOF)
8
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
68
Material
HSS-E
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986815
Ordering code ANSI
B16124.0
Overall length - inch (OAL)
10.5512
Overall length - millimeter (OAL)
268
Shank
Morse Taper Shank
Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 24.00mm with an overall length of 268mm, a flute length of 68mm and 169mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
