Dormer B95312.0 5986998 Machine Reamer for Conical Pin Left Hand Helix 45° 3FL 12.00 mm
MODEL 5986998
$208.70 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 2179
Coating
Bright

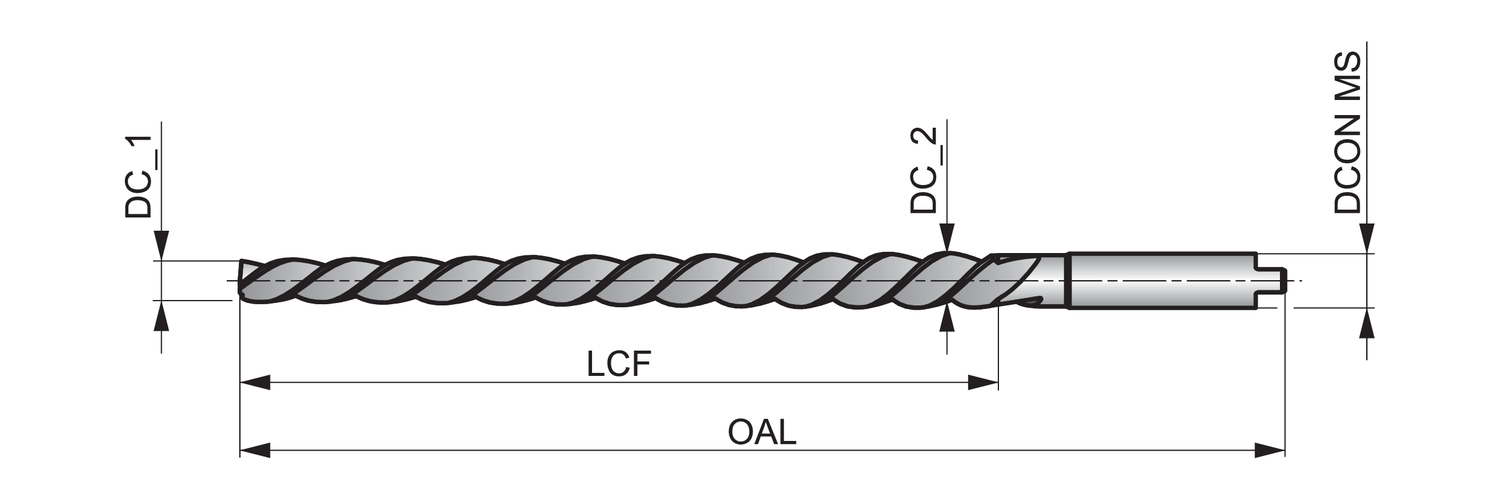

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
11.8
EDP number
53898
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
210
Material
HSS-E
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986998
Nominal diameter
12
Ordering code ANSI
B95312.0
Overall length - inch (OAL)
11.4173
Overall length - millimeter (OAL)
290
Shank
Cylindrical shank with Tang
Taper gradient - millimeter (Rate of taper)
0.02
Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank with tang, small end diameter 11.80mm with an overall length of 290mm, a flute length of 210mm and 16.00mm large end diameter, according to DIN 2179 standard for reaming pin holes with a 1:50 taper into which 12.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, cast aluminium.
