Dormer G10631.0 7147787 Countersink with Tri-Flat shank - 90° 3FL 31.00 mm
MODEL 7147787
$190.90 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DIN 335 C
Coating
Bright

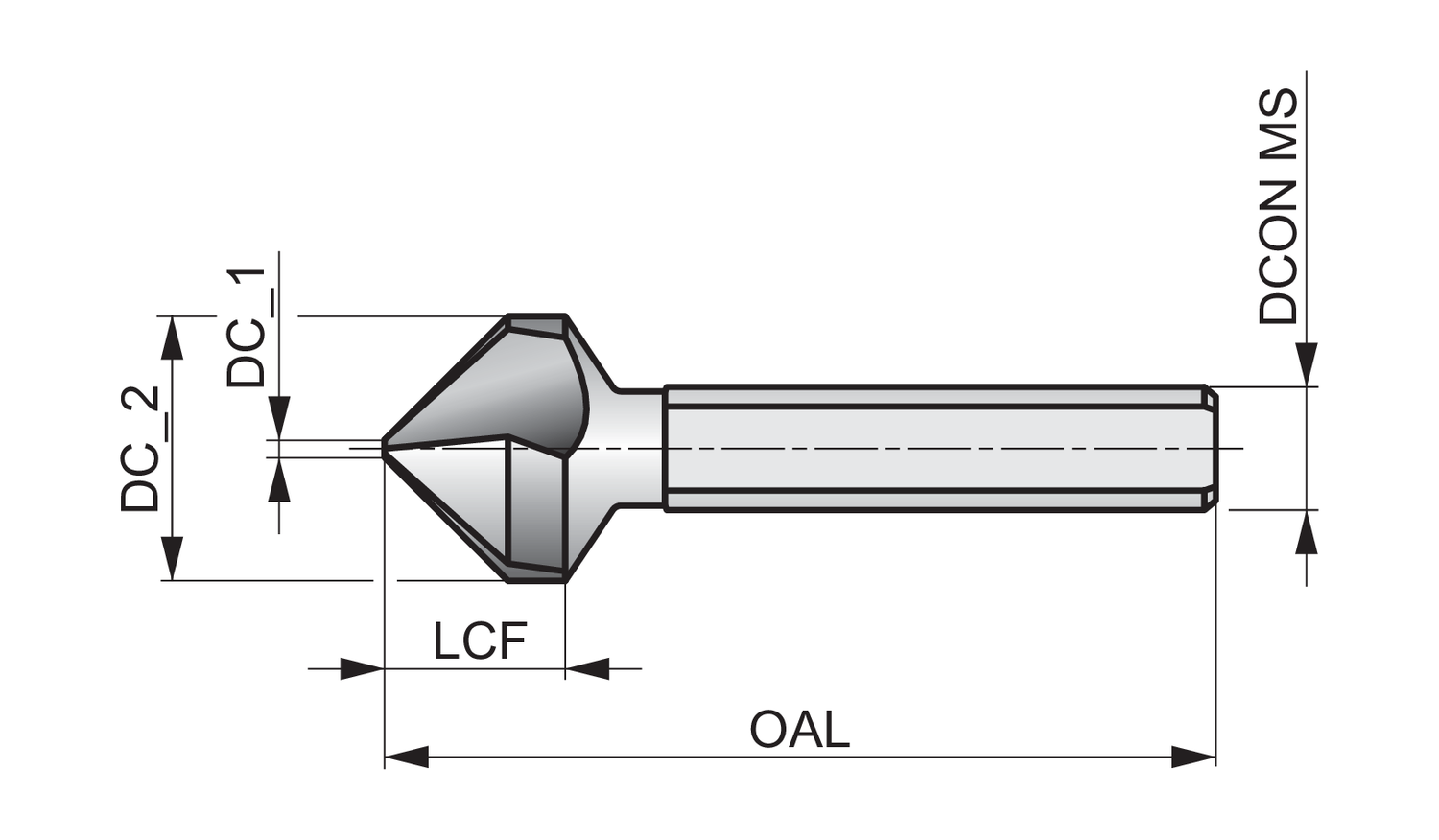

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
4.2
EDP number
47147787
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
18.5
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
7147787
Ordering code ANSI
G10631.0
Overall length - inch (OAL)
2.7953
Overall length - millimeter (OAL)
71
Point Angle (SIG)
90
Shank
Cylindrical shank with 3-Flats
Countersink with 3-flutes, 90° chamfering angle, maximum diameter 31.00mm with an overall length of 71mm and a head length of 18.5mm and 12mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys.
