Dormer G10650.0 7147791 Countersink with Tri-Flat shank - 90° 3FL 50.00 mm
MODEL 7147791
$527.48 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DIN 335 C
Coating
Bright

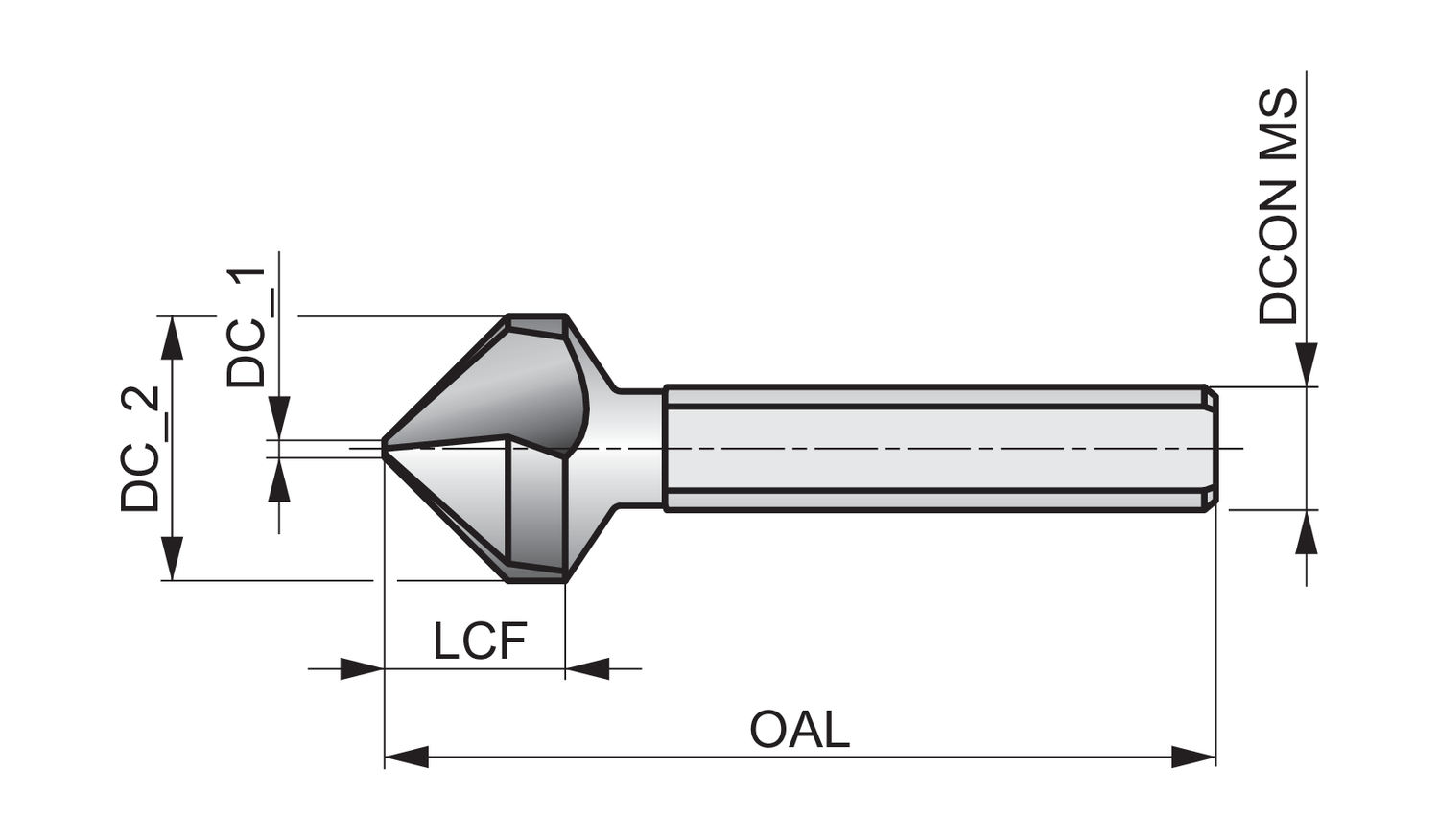

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
5
EDP number
47147791
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
23.6
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
7147791
Ordering code ANSI
G10650.0
Overall length - inch (OAL)
4.9606
Overall length - millimeter (OAL)
126
Point Angle (SIG)
90
Shank
Cylindrical shank with 3-Flats
Countersink with 3-flutes, 90° chamfering angle, maximum diameter 50.00mm with an overall length of 126mm and a head length of 23.6mm and 16mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 5.00mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys.
