Dormer G13212.5 5973334 Countersink - 90° 5FL 12.50 mm
MODEL 5973334
$33.32 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DIN 335 A
Coating
Bright

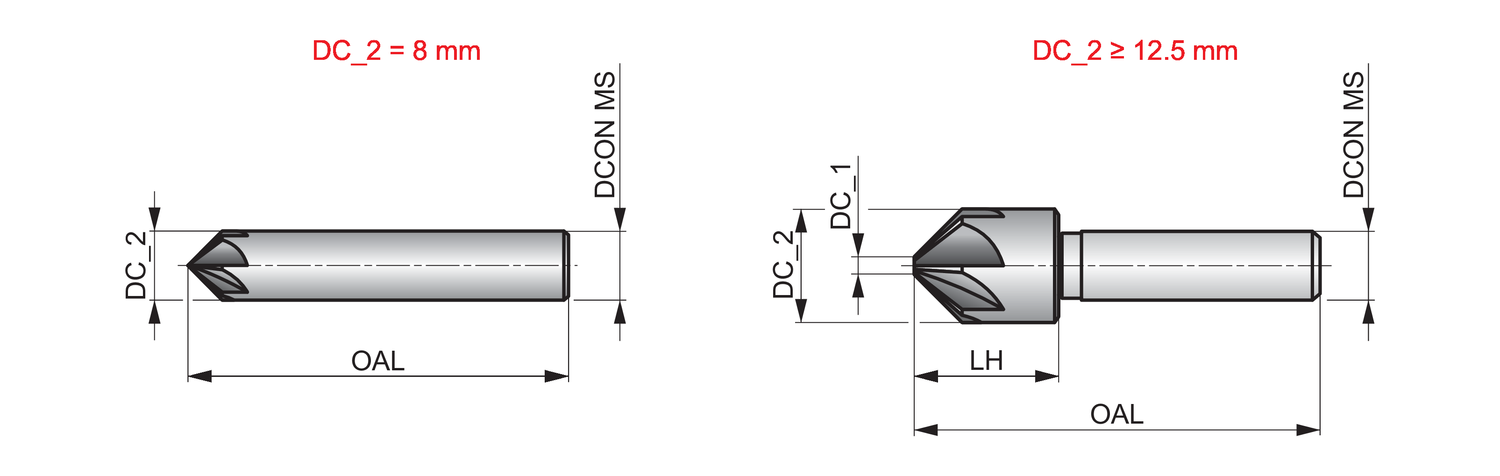

Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
2
EDP number
108260
Flute count (NOF)
5
Hand (Cutting direction)
Right
Head length - millimeter (LH)
15.5
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5973334
Ordering code ANSI
G13212.5
Overall length - inch (OAL)
1.8898
Overall length - millimeter (OAL)
48
Point Angle (SIG)
90
Shank
Cylindrical shank
Rose pattern countersink with 5-flutes, 90° chamfering angle, maximum diameter 12.50mm with an overall length of 48mm and a head length of 15.5mm and 8mm straight shank, according to DIN 335 A standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00mm, HSS with standard bright finish for machining tool steel, grey cast-iron, cast aluminium.
