Dormer G13740.0 5973147 Morse Taper Shank Countersink - 60° 3FL 40.00 mm
MODEL 5973147
$335.46 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 60°
Basic Standard
DIN 334 D
Coating
Bright

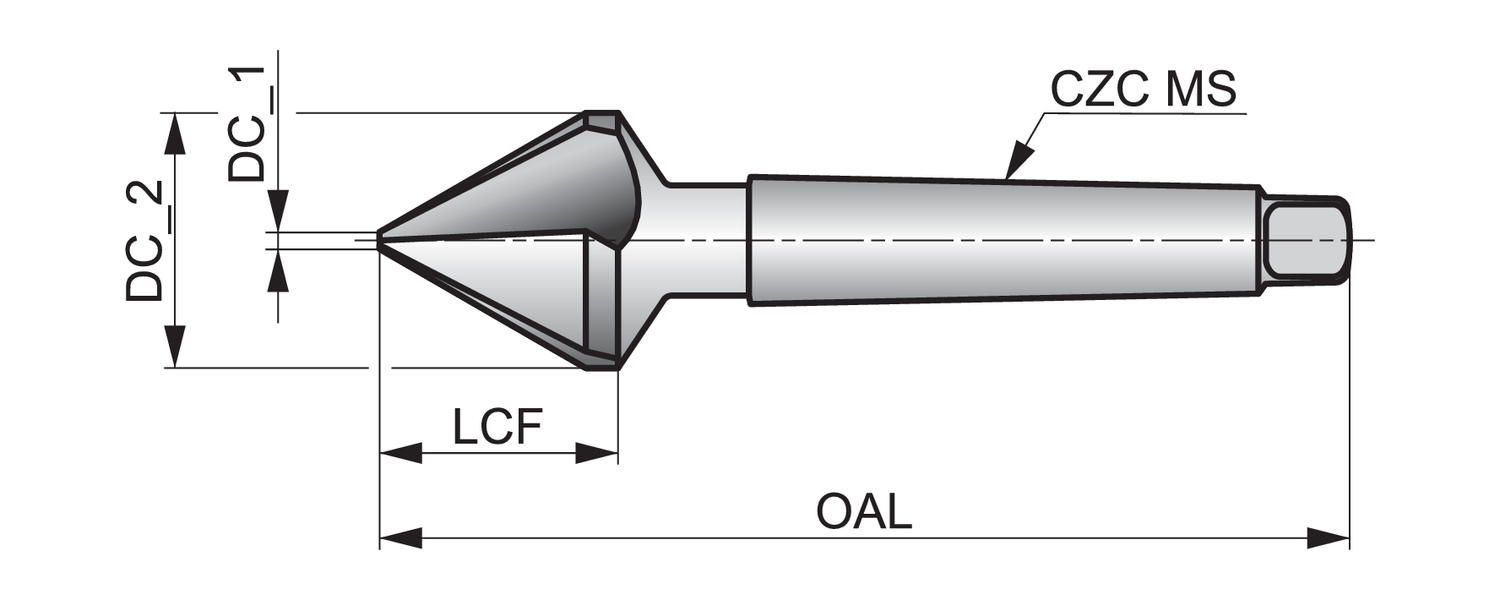

Connection size code machine side (CZC MS)
MK 3
Cutting diameter step - millimeter
12.5
EDP number
108802
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
28.5
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5973147
Ordering code ANSI
G13740.0
Overall length - inch (OAL)
5.9055
Overall length - millimeter (OAL)
150
Point Angle (SIG)
60
Shank
Morse Taper Shank
Countersink with 3-flutes, 60° chamfering angle, maximum diameter 40.00mm with an overall length of 150mm and a head length of 28.5mm and MT 3 Morse-taper shank, according to DIN 334 D standard for deburring and chamfering holes with a minium hole diameter of 12.50mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys.
