Dormer G13840.0 5973074 Morse Taper Shank Countersink - 90° 3FL 40.00 mm
MODEL 5973074
$305.88 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DIN 335 D
Coating
Bright

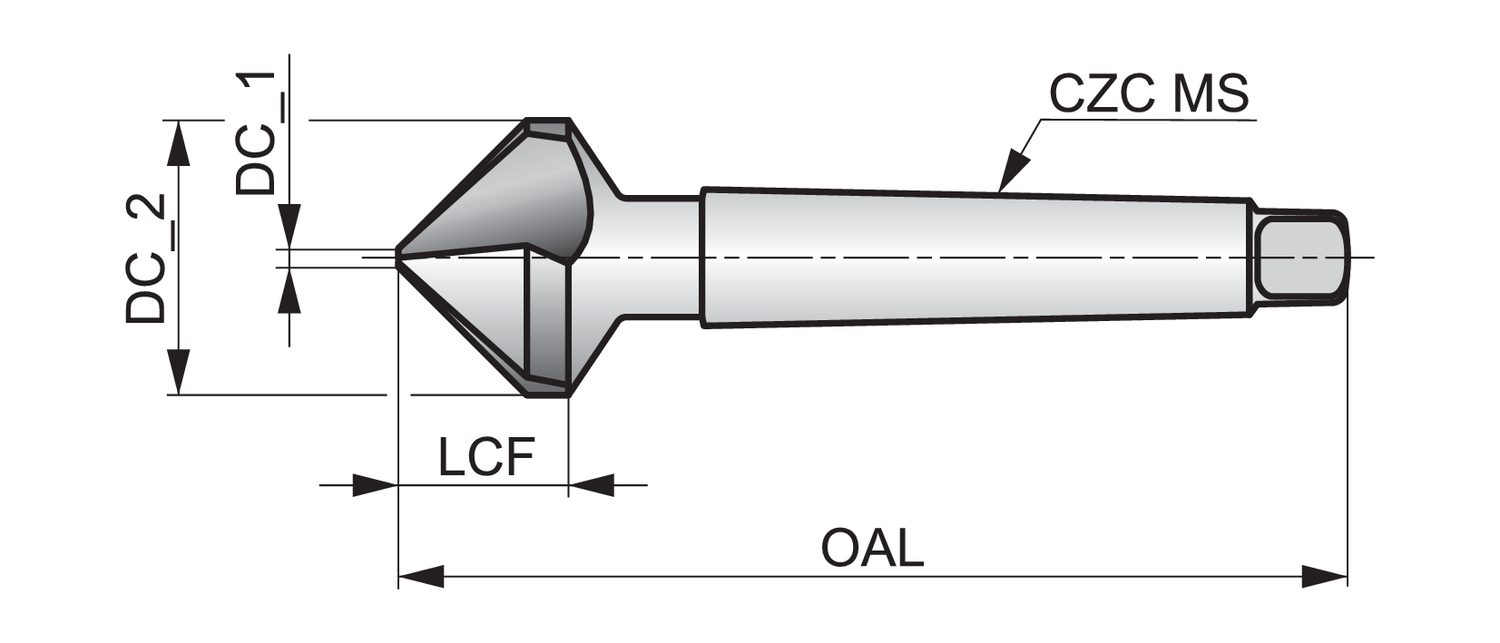

Connection size code machine side (CZC MS)
MK 3
Cutting diameter step - millimeter
10
EDP number
108963
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
20.5
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5973074
Ordering code ANSI
G13840.0
Overall length - inch (OAL)
5.5118
Overall length - millimeter (OAL)
140
Point Angle (SIG)
90
Shank
Morse Taper Shank
Countersink with 3-flutes, 90° chamfering angle, maximum diameter 40.00mm with an overall length of 140mm and a head length of 20.5mm and MT 3 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 10.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys.
