Image for Illustration purposes only. Actual product may vary
Dormer G1718.3 5972706 Countersink - 100° 3FL 8.30 mm
MODEL 5972706
$35.50 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 100°
Basic Standard
DIN 335 C
Coating
TiAlN
Coating property (CTP)
1

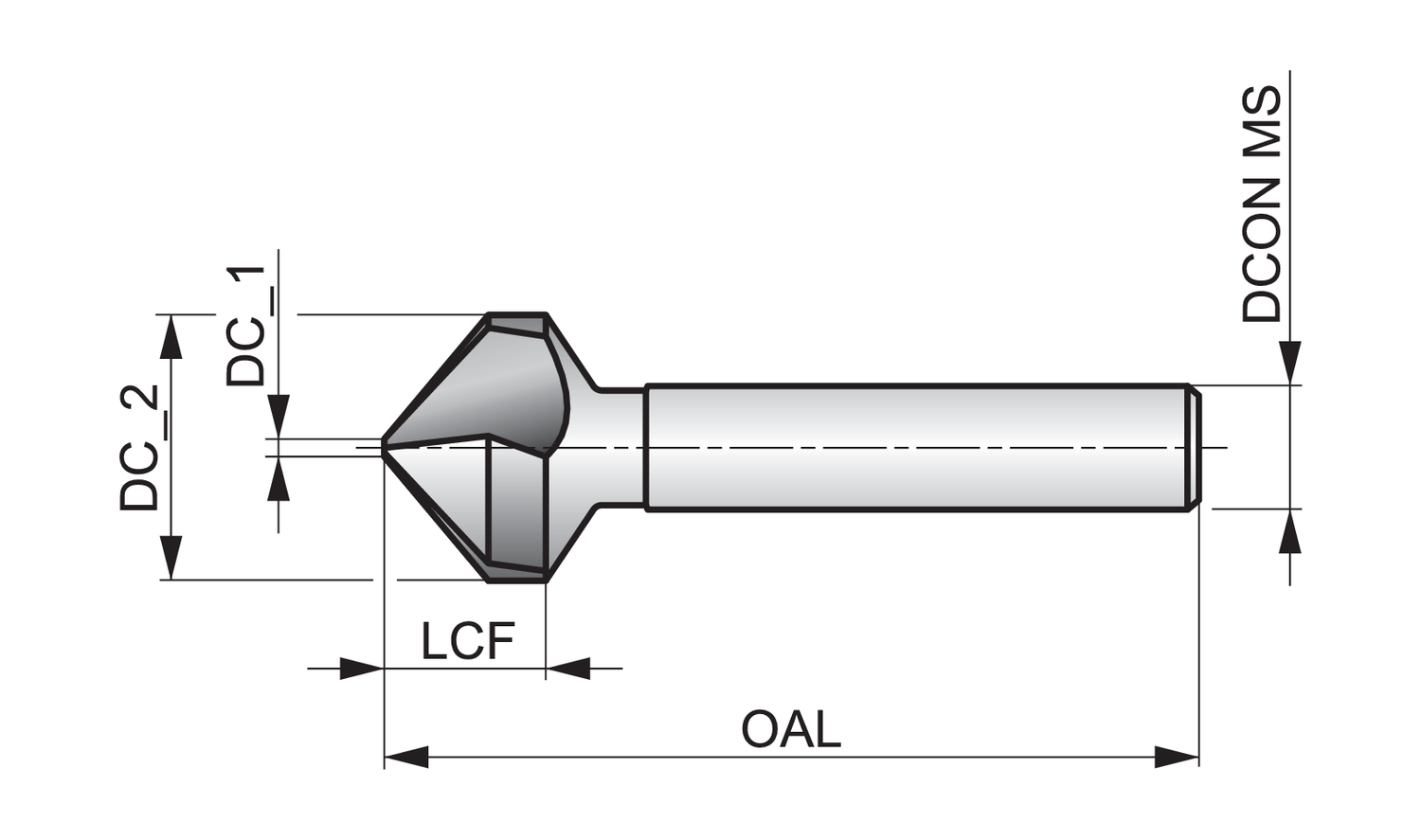

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
2
EDP number
372616
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
5.5
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5972706
Ordering code ANSI
G1718.3
Overall length - inch (OAL)
1.9291
Overall length - millimeter (OAL)
49
Point Angle (SIG)
100
Shank
Cylindrical shank
Countersink with 3-flutes, 100° chamfering angle, maximum diameter 8.30mm with an overall length of 49mm and a head length of 5.5mm and 6mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 2.00mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys.
