Image for Illustration purposes only. Actual product may vary
Dormer C12625.0 5983880 Slot Drill 25.00 mm
MODEL 5983880
$157.41 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 327 D
Coating
TiCN
Coating property (CTP)
1

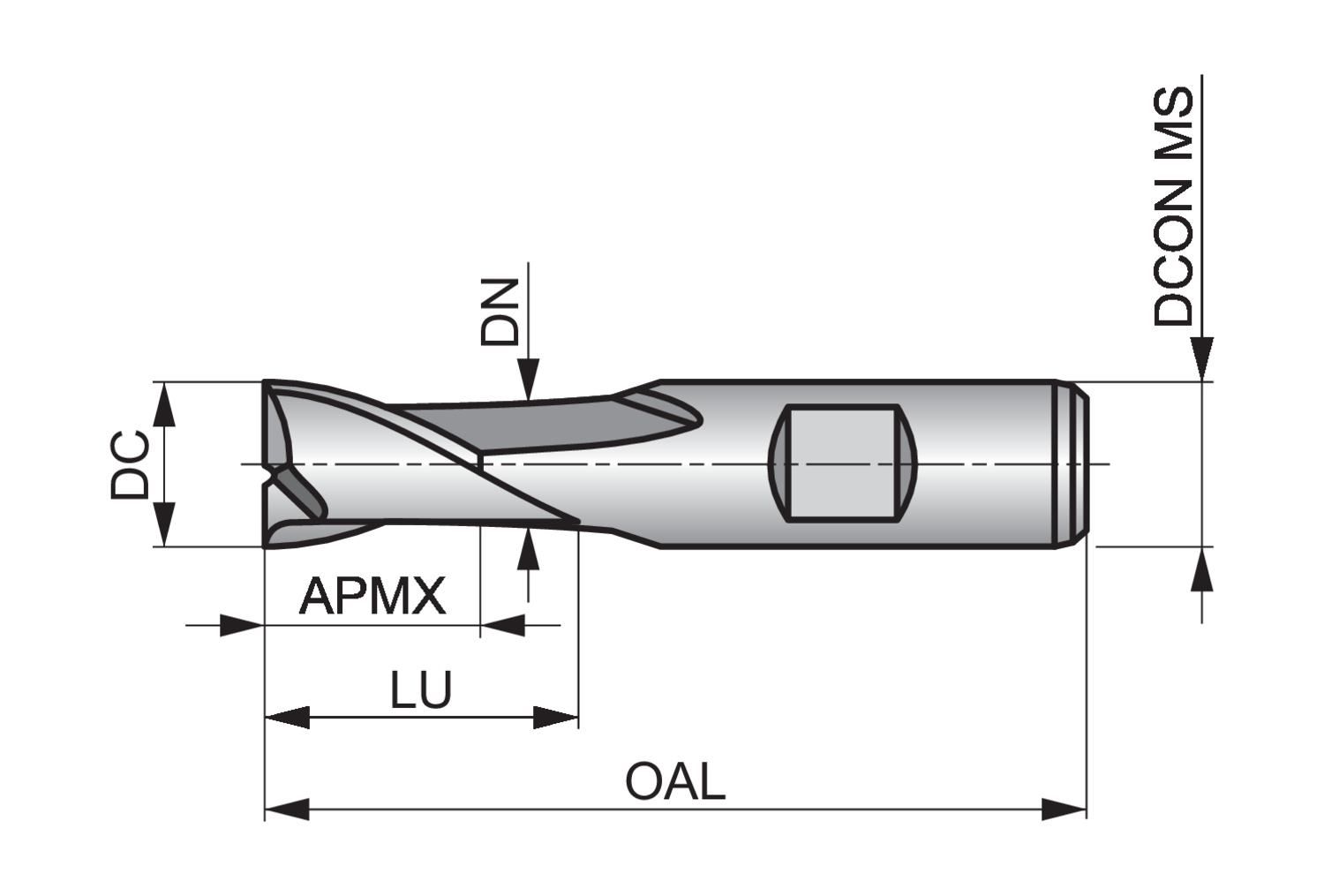

Connection diameter - inch (DCON MS)
0.9843
Connection diameter - millimeter (DCON MS)
25
Connection diameter tolerance machine side (TCDCONMS)
h6
Cut length
Extra short
Cutting diameter - inch (DC)
0.9843
Cutting diameter - millimeter (DC)
25
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
1.0236
Depth of cut maximum - millimeter (APMX)
26
EDP number
354049
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HSS-E-PM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5983880
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.9646
Neck diameter - millimeter (DN)
24.5
Ordering code ANSI
C12625.0
Overall length - inch (OAL)
4.0157
Overall length - millimeter (OAL)
102
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
45.5
C126 2 flute milling cutters will give you great performance coupled with a long tool life, being manufactured from powder metal High Speed cobalt.
They have a titanium carbo nitride coating which further increases the service life of the cutter and gives improved performance when machining hard and abrasive materials.
The high rigidity achieved by the short length flute design makes C126 perfect for milling shallow slots, whilst the accurate diameter means they are also perfect for milling standard keyway slots to a P9 tolerance.
For effective use in plunging, ramping and profile milling of steels, cast iron and stainless steels, there’s no more versatile cutter than the C126
