Image for Illustration purposes only. Actual product may vary
Dormer C1394.0 5983999 Slot Drill 4.00 mm
MODEL 5983999
$39.29 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
TiCN
Coating property (CTP)
1

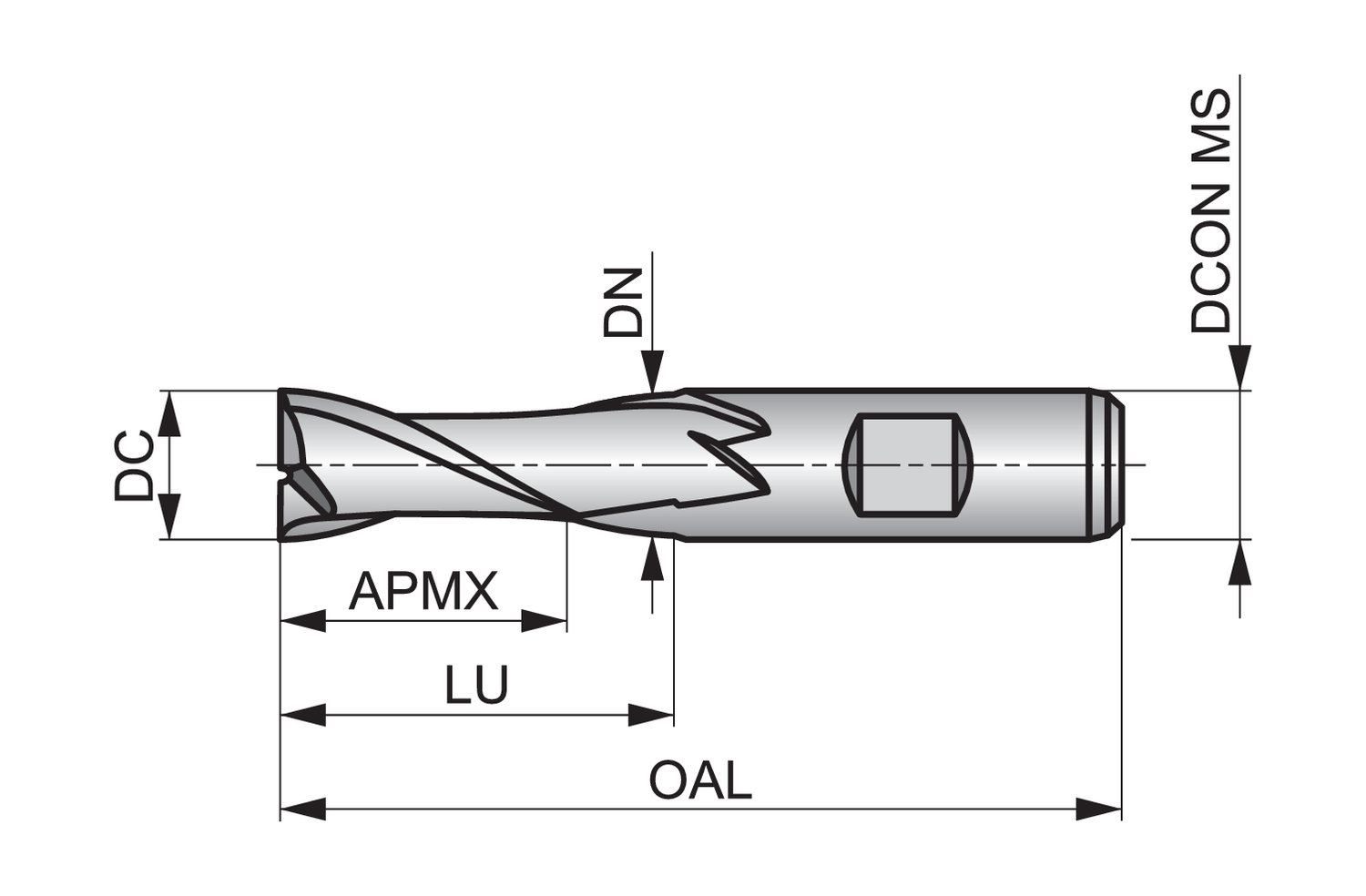

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h6
Cut length
Short
Cutting diameter - inch (DC)
0.1575
Cutting diameter - millimeter (DC)
4
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
0.4331
Depth of cut maximum - millimeter (APMX)
11
EDP number
354384
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HSS-E-PM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5983999
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C1394.0
Overall length - inch (OAL)
2.1654
Overall length - millimeter (OAL)
55
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Dormer’s C139 milling cutters have a medium flute length for high rigidity when milling standard slots and an accurate diameter which means standard keyway slots can be milled to a P9 tolerance.
They are manufactured from powder metal High Speed cobalt which means longer tool life and better performance.
Couple this with the titanium carbo nitride coating which further improves tool life and gives great performance when threading hard and abrasive materials and you have a very versatile tool, capable of ramping, plunging and profile milling in steels, stainless steels and cast iron
